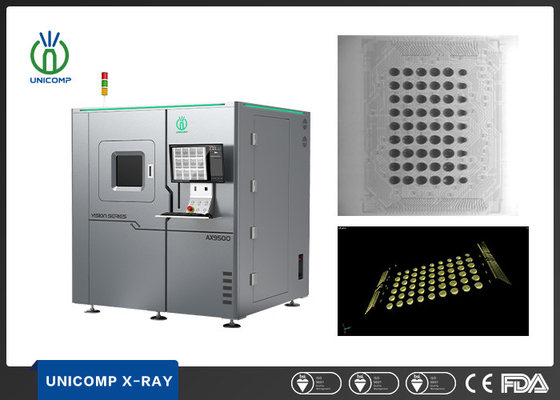

3D X-Ray computed temography offline CT Inspection system unicomp AX9500 for PCB layers inspection
Fully upgraded new products, can perform CT detection on BGA, CSP, flip chips, LEDs and other semiconductors, can also be used for SMT welding analysis, 3D tomography CT scanning system (planar CT + cone beam CT)
Applications
Widely Used in semiconductor, SMT, photovoltaic, ceramic products and other special industries, can also be used to detect auto parts, aluminum die-casting mold castings, molded plastic parts, etc.
Specifications
| System Summary | |
| Footprint | 1700(W)*1660(D)*1900(H)mm |
| Machine Weight | ≈2700kg |
| Max.Tube Power | 64W |
| Max.Target Power | 15W |
| Max.Voltage / Current | 160kV/1000μA |
| X-Ray Leakage | <0.5μSv/h |
| Imaging System | |
| Tube Type | Open tube |
| Resolution | 1 μm(Optional 0.5μm) |
| Detector | FPD |
| System Magnification | 600X |
| Inspection Area | |
| Max. Inspection Dimension | 530*470mm |
| Max.Load Dimension | 600*545mm |
| Max.Inspection Area (XL Size) | 610*1200mm |
| Motion Control Mode | Joystick Mouse& Keyboard |
| Detector Angle | 360° full viewing angle, 2*70 degree tilt |
| * Specifications are subject to change without notice, All trademarks are the property of the system maker. | |
