Inline Unicomp LX9200 X Ray Inspection System High Precision For PCB / BGA Analysis
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
LX9200
Trading Properties
Minimum Order Quantity:
1Set
Price:
can negotiate
Payment Terms:
T/T, L/C
Supply Ability:
300 sets per month
Product Summary
Inline High-Precision 3D X-Ray Tomography for PCB and BGA Analysis Unicomp LX9200 X-Ray inspection system Unicomp Technology 3D Inline X-ray Inspection Equipment——LX9200 As a new generation of upgraded and optimized LX9200 online inspection equipment, it can easily meet the multi-directional and ...
Product Details
Highlight:
Inline X Ray Inspection System
,Unicomp X Ray For BGA Analysis
,Unicomp X Ray For PCB Analysis
Name:
Unicomp X-ray Inspection Machine
Application:
SMT, EMS,BGA, Electronics, CSP , LED , Flip Chip , Semiconductor
Industry:
Electronics Industry
X-Ray Leakage:
< 1uSv/h
Product Description

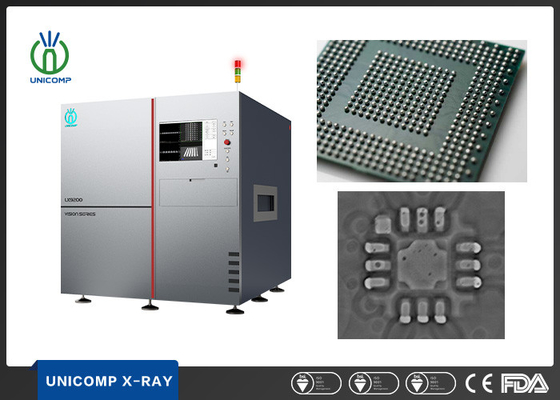

Inline High-Precision 3D X-Ray Tomography for PCB and BGA Analysis Unicomp LX9200 X-Ray inspection system
Unicomp Technology 3D Inline X-ray Inspection Equipment——LX9200
As a new generation of upgraded and optimized LX9200 online inspection equipment, it can easily meet the multi-directional and multi-angle product inspection needs of different users.
Application Field
| SMT/PCBA | Package type: BGA, LGA, CSP, POP, SIP... Defect type: Void, HIP, Insufficient, Bridge... |
| Semiconductor | Package type: W/B, IC, F/C... Defect type: Void, Open, Short, Sweep, Solder ball... |
| Other areas | Battery, IGBT... |
Function Features
-
2D, 2.5D, and 3D all in one Inline X-Ray Inspection System
-
Multiple Resolution Selected (Max. 6μm)
-
130KV Closed Micro-focus X-Ray Generator
-
Real-time image with HD FPD Detector
-
11-axis Linkage System
-
360° Circular CT Image
-
Data Tracking and Reworking System Embedded
Technical Parameters and Specifications
| System Summary | |
| Footprint | 1640(W)*2070(D)*1800(H)mm |
| Machine Weight | ≈3450kg |
| Power Supply | 220AC/50Hz |
| Power | 5.5 kW |
| X-ray Leakage | < 0.5µSv/h |
| Imaging System | |
| Tube Type | Closed |
| Max. Voltage | 130kV |
| Detector | FPD |
| Image Acquisition | 2D/2.5D/3D |
| Inspection Area | |
| Max. Inspection Area (M Size) | 255*330mm |
| Max. Inspection Area (L Size) | 440*550mm |
| Max.Inspection Area (XL Size) | 610*1200mm |
| PCBA thickness | 0.5~5mm |
| PCBA Craft side | 5mm |
| PCBA warpage compensation | ±2mm |
| Clearance Top | 70mm |
| Clearance Bottom | 40mm |
| * Specifications are subject to change without notice, All trademarks are the property of the system maker. | |
