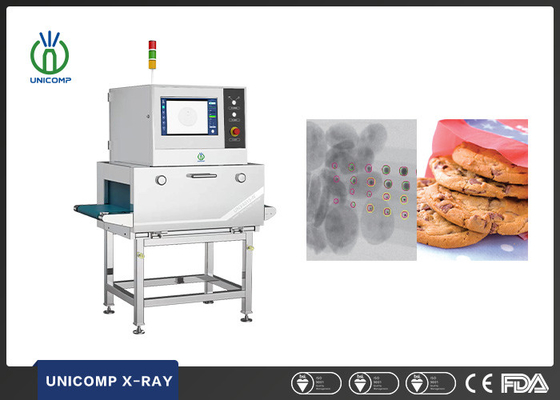

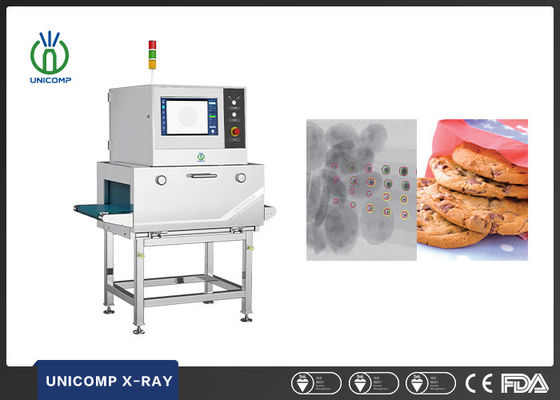

UNX4015N X Ray System For Ham Sausage / Jerky / Nuts Foreign Matters Inspection

Basic Properties
Place of Origin: China
Brand Name: Unicomp
Certification: CE
Model Number: UNX4015N
Trading Properties
Minimum Order Quantity: 1 PCS
Price: USD
Payment Terms: T/T, L/C
Supply Ability: 100 pcs per month
Tags

food x ray inspection equipment

x ray food inspection systems

food through x ray machine
Product Summary
UNX4015N X-Ray system for ham sausage/jerky/nuts foreign matters inspection Application UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, ...

Product Details

Highlight:

X Ray System For Ham Sausage

,

Unicomp X Ray For Ham Sausage

,

Unicomp X Ray For Jerky
Machine Weight: 500kg
X-Ray Tube: 80-120kv/210-480W
Power Supply: AC 110/220V, 50/60Hz
Max. Loading Weight: 10kg
X-Ray Detector: Diode Array With 0.4mm Resolution
Conveyor Speed: 10-60M/min
Heavy Load Conveyor Speed: 10-40M/min
Product Description

UNX4015N X-Ray system for ham sausage/jerky/nuts foreign matters inspection



Application



UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.



Features

  • UNX4015N X Ray System For Ham Sausage / Jerky / Nuts Foreign Matters Inspection 0Easy to Operate: one button start&stop, optional default product

  • UNX4015N X Ray System For Ham Sausage / Jerky / Nuts Foreign Matters Inspection 0Provide High precision automatic foreign detection, It can effectively identify metal, ceramic, glass, bone, shell and other malignant foreign matter in the product

  • UNX4015N X Ray System For Ham Sausage / Jerky / Nuts Foreign Matters Inspection 0Sensitivity adjustment, alarm management, powerful data statistics report

  • UNX4015N X Ray System For Ham Sausage / Jerky / Nuts Foreign Matters Inspection 0The detection sensitivity reaches the industry's highest standard Intelligent algorithm based on in-depth learning of AI

  • UNX4015N X Ray System For Ham Sausage / Jerky / Nuts Foreign Matters Inspection 0Tool free for conveyor belt and protective curtains



X-ray images

UNX4015N X Ray System For Ham Sausage / Jerky / Nuts Foreign Matters Inspection 5



Specificaitions



Equipment
Features		 Dimension 1168(W)X985(D)X1510(H)mm
Machine weight 500kg
X-ray tube 80-120kv/210-480W
Power Supply AC 110/220V, 50/60Hz
Max. Loading weight 10kg
X-ray detector Diode array with 0.4mm resolution
Channel size 400mm(W)*150mm(H)
Conveyor Speed 10-60M/min
Heavy load Conveyor Speed 10-40M/min
Operating Range 10°C to 40°C (50°F to 104°F),30% to 90% relative humidity non-condensing
Capability Detection Accuracy SUS BALL≥ø0.3mm
SUS wire≥ø0.2*2mm
Glass ball≥ø1.0mm
Ceramic ball≥ø1.0mm
System Computer Communications 1*LAN,2*USB
Industrial PC 17"LCD touch screen；Windows 10
Optional configuration Rejector

Sound-Light alarm, flipper,dropout,air jet,

Pusher,chute,shuttle
Other Ingress protection Conveyor: IP66, Others: IP65
X-Ray Safety <1μSv/h



Dimensions and Appearance

UNX4015N X Ray System For Ham Sausage / Jerky / Nuts Foreign Matters Inspection 6
