Quality Food X Ray Detection Equipment For Dry Pack Food Inspection With Auto Rejector factory

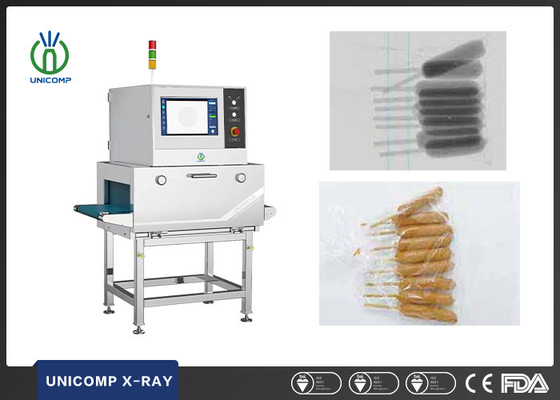

Food X Ray Detection Equipment For Dry Pack Food Inspection With Auto Rejector

Name: Food X Ray Detection Equipment For Dry Pack Food Inspection With Auto Rejector
Brand: Unicomp Technology
SKU: UNX4015N
Price: 45,000.00 USD
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: Unicomp

Certification: CE

Model Number: UNX4015N

Trading Properties

Minimum Order Quantity: 1 PCS

Price: USD

Payment Terms: T/T, L/C

Supply Ability: 100 pcs per month

food x ray inspection equipment

Food X-Ray detection equipment for dry pack food inspection with auto rejector Application UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits...

Product Details

Highlight:

CE Food X Ray Detection Equipment

,

Auto Rejector X Ray Detection Equipment

,

Dry Pack Food Unicomp X Ray

Machine Weight: 500kg

X-Ray Tube: 80-120kv/210-480W

Power Supply: AC 110/220V, 50/60Hz

Max. Loading Weight: 10kg

X-Ray Detector: Diode Array With 0.4mm Resolution

Conveyor Speed: 10-60M/min

Heavy Load Conveyor Speed: 10-40M/min

Product Description

Food X-Ray detection equipment for dry pack food inspection with auto rejector

Application

UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.

Features

Easy to Operate: one button start&stop, optional default product
Provide High precision automatic foreign detection, It can effectively identify metal, ceramic, glass, bone, shell and other malignant foreign matter in the product
Sensitivity adjustment, alarm management, powerful data statistics report
The detection sensitivity reaches the industry's highest standard Intelligent algorithm based on in-depth learning of AI
Tool free for conveyor belt and protective curtains

X-ray images

Specificaitions

Equipment Features	Dimension	1168(W)X985(D)X1510(H)mm
	Machine weight	500kg
	X-ray tube	80-120kv/210-480W
	Power Supply	AC 110/220V, 50/60Hz
	Max. Loading weight	10kg
	X-ray detector	Diode array with 0.4mm resolution
	Channel size	400mm(W)*150mm(H)
	Conveyor Speed	10-60M/min
	Heavy load Conveyor Speed	10-40M/min
	Operating Range	10°C to 40°C (50°F to 104°F),30% to 90% relative humidity non-condensing
Capability	Detection Accuracy	SUS BALL≥ø0.3mm
		SUS wire≥ø0.2*2mm
		Glass ball≥ø1.0mm
		Ceramic ball≥ø1.0mm
System Computer	Communications	1LAN,2USB
System Computer	Industrial PC	17"LCD touch screen；Windows 10
Optional configuration	Rejector	Sound-Light alarm, flipper,dropout,air jet, Pusher,chute,shuttle
Other	Ingress protection	Conveyor: IP66, Others: IP65
	Ingress protection	Conveyor: IP66, Others: IP65
	X-Ray Safety	<1μSv/h

Dimensions and Appearance

UNX4015N-footprint
