Unicomp Foreign Material Stone Glass Metal X Ray Inspection Machine for Food Package

Basic Properties
Place of Origin: China
Brand Name: UNICOMP
Certification: CE, FDA
Model Number: UNX6030N
Trading Properties
Minimum Order Quantity: 1 set
Price: can negotiate
Payment Terms: L/C, T/T
Supply Ability: 100set/montrh
Product Summary
Unicomp Foreign Material Stone, Glas,Metal X Ray Inspection Machine for Food Package Applications of Food Xray UNX6030N UNX6030-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, ...

Product Details

Highlight:

Foreign Material X Ray Inspection Machine

,

Foreign Material Food X Ray machine

,

Food Package Unicomp X Ray Machine

Machine Weight: 800kg
X-Ray Tube: 80-120kv/210-480W
Power Supply: AC 110/220V, 50/60Hz
Max. Loading Weight: 15kg
X-Ray Detector: Diode Array With 0.4mm Resolution
Conveyor Speed: 10-60M/min
Product Description

Unicomp Foreign Material Stone, Glas,Metal X Ray Inspection Machine for Food Package

Applications of Food Xray UNX6030N

UNX6030-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.



Technical Specifications of Food Xray UNX6030N

Equipment Features Dimension 1500(W)X1300(D)X2050(H)mm
Machine weight 800kg
X-ray tube 80-120kv/210-480W
Power Supply AC 110/220V, 50/60Hz
Max. Loading weight 15kg
X-ray detector Diode array with 0.4mm resolution
Channel size 400mm(W)*150mm(H)
Conveyor Speed 10-60M/min
Heavy load Conveyor Speed 10-40M/min
Operating Range 10°C to 40°C (50°F to 104°F),
30% to 90% relative humidity non-condensing
Capability Detection Accuracy SUS BALL≥ø0.3mm
SUS wire≥ø0.2*2mm
Glass ball≥ø1.0mm
Ceramic ball≥ø1.0mm
System Computer Communications 1*LAN,2*USB
Industrial PC 17"LCD touch screen; Windows 10
Optional configuration Rejector Sound-Light alarm,
flipper,dropout,air jet,
Pusher,chute,shuttle
Other Ingress protection Conveyor: IP66, Others: IP65
X-Ray Safety <1μSv/h

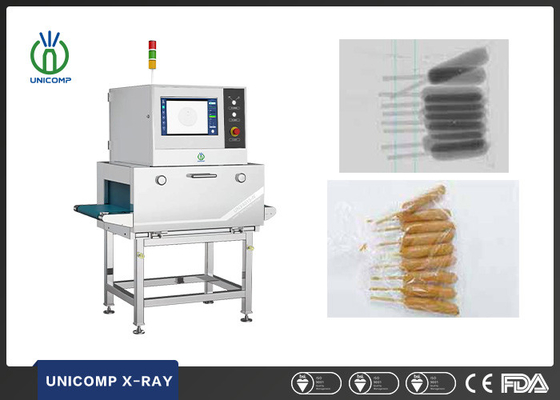

X-ray images

Unicomp Foreign Material Stone Glass Metal X Ray Inspection Machine for Food Package 0



Dimensions and Appearance of Food Xray UNX6030N

Unicomp Foreign Material Stone Glass Metal X Ray Inspection Machine for Food Package 1



Features of Food Xray UNX6030N

  • Easy to Operate: one button start & stop, optional default product

  • Provide High precision automatic foreign detection, It can effectively identify metal, ceramic,glass, bone, shell and other malignant foreign matter in the product

  • Sensitivity adjustment, alarm management, powerful data statistics report

  • The detection sensitivity reaches the industry's highest standard Intelligent algorithm based on in-depth learning of AI

  • Tool free for conveyor belt and protective curtains
