6 Axis Automatic CNC 2D X Ray Radiography Machine for BGA voids Auto measurement
Product Details
X Ray Radiography Machine for BGA
,2D X Ray Radiography Machine
,Auto Measurement UNICOMP X Ray
X-Ray Inspection Machine Electronics BGA Standard Multifunction
Unicomp Technology has a dedicated pool of local and foreign senior professional R & D engineers with extensive experience in high level science and technology. The company is undertaking major national special project (namely “02” project and “863” project) and X-ray detecting equipment R&D in new fields of application. It also works closely with The Chinese academy of sciences, Tsinghua University etc. to advance the core technology of X-ray imaging. Presently Unicomp has submit a total of 256 patents with 199authorized. Unicomp has obtained numerous management system certification, such as ISO 9001 quality management system, ISO 14001 environmental management system, OHSAS18001 occupational health & safety management system, as well as ISO27001 information safety management system.

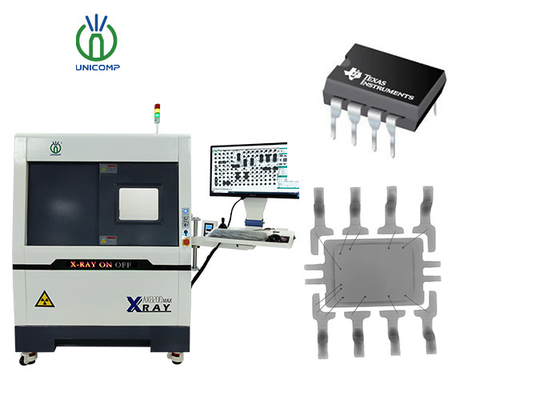

The AX-8200 machine is designed to provide high resolution x-ray imaging primarily for the electronics industry. This versatile system is effective for many applications within the PCB manufacturing process. This includes BGA, CSP, QFN, Flip Chip, COB and the wide range of SMT components. The AX-8200 is a powerful support tool for process development, process monitoring and refinement of the rework operation. Supported by a powerful and easy to use software interface, the AX-8200 is capable of addressing small and large volume factory requirements. (Contact us for details)
Applications:
|
Item |
Definition |
Specs |
|
System Parameters |
Size |
1280(W)×1500(D)×1700(H)mm |
|
Weight |
1370 kg |
|
|
Power |
AC 110~220V, 50/60Hz |
|
|
Power Consumption |
2.0 kW |
|
|
X-ray Tube |
Type |
Sealed |
|
Max.Voltage |
90kV/100kV |
|
|
Max.Power |
8W |
|
|
Spot Size |
5μm |
|
|
X-ray System |
Detector |
Flat Panel Detector (FPD) |
|
Monitor |
24’’ FHD Interactive Touch LCD Display |
|
|
System Magnification |
600x |
|
|
Detection Region |
Max. Loading Area |
610*610mm |
|
Max.Inspection Area |
550*550mm |
|
|
X-ray Leakage |
< 1uSv/h |
|
BGA , CSP , LED , Flip Chip , Semiconductor,
Battery Industry , Small Metal Casting,
Electronic Connector Module,
Aerospace Components , Photovoltaic Industry,
Other Special Industries.
-
