High Precision Lithium Battery Housing X-ray Inspection Machine with Robot Handling UNC160
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE
Model Number:
UNC320
Trading Properties
Minimum Order Quantity:
1Set
Price:
Can Negotiate
Payment Terms:
T/T, L/C
Supply Ability:
10 sets per month
Product Summary
Aerospace Foundry Industrial X Ray Machine UNC320 Aluminum Iron Casting Inspection Images: UNC320 is a compact industrial X-ray inspection system designed for broad aerospace and foundry (automotive) applications. Flexible 2D inspection of casting defects and production flaws provide the confidence ...
Product Details
Highlight:
High precision X-ray inspection machine
,robot handling X-ray inspection machine
,weld defects X-ray inspection machine
Model:
In-line Continous
Maximum Penetration（FE）:
48mm
Tube Voltage:
320KV
Focal Size:
0.4mm/1.0mm
Size:
2290mm*1604mm*2598mm（L*W*H）
Pixel Size:
139μm
Weight:
7.5T
Power Consumption:
9kW
Product Description

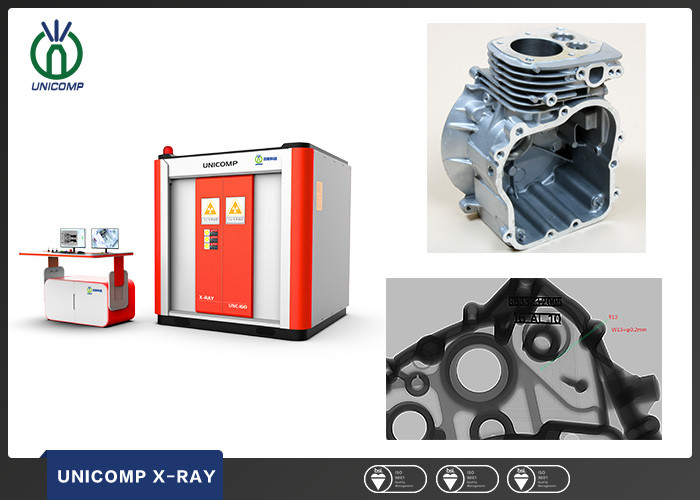

Aerospace Foundry Industrial X Ray Machine UNC320 Aluminum Iron Casting
Inspection Images:
UNC320 is a compact industrial X-ray inspection system designed for broad aerospace and foundry (automotive) applications. Flexible 2D inspection of casting defects and production flaws provide the confidence of a safe and reliable analysis.
1. Compact X-ray system for high-quality, dependable inspection results
2. Manual and programmable X-ray and computed tomography inspection
3. True lnspect ADR (automatic defect recognition) for foundry applications
4. Responsive solution that can be adapted to your special application needs
5. Review workstation for image evaluation
6. Data Matrix Code reader for part type recognition
7. Floor tilt axis for maximum versatility
Technical Data
| Attribute | Respective Value |
| Maximum penetration(FE) | 48mm |
| Equipment weight | 7.5T |
| System Dimension | 2290mm*1604mm*2598mm(L*W*H) |
| X-ray Tube | 320KV |
| Power | 800W/1800W |
| Pixel Pitch | 139μm |
| Focal size | 0.4mm/1.0mm |
| Image Area | 250mm x 300mm |
