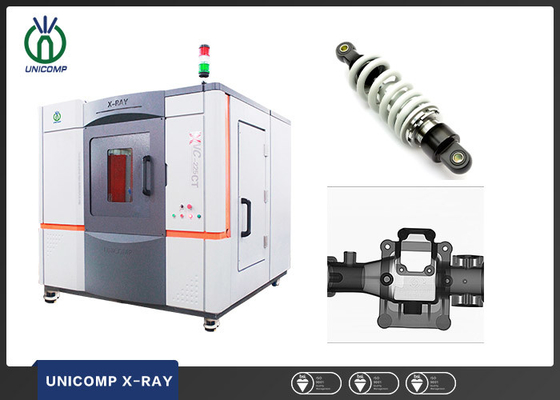

Quality NDT X ray machine Unicomp UNC225 with ASTM standard EN12543 for shock absorber defect testing
Product Details
EN12543 NDT X ray machine
,shock absorber NDT X ray machine
,ASTM standard X ray machine
Engine Blocks Brake Caliper Industrial Real Time X Ray Inspection Equipment
Whether in the automotive, electronics or aircraft industry or for ship and vessel construction, Unicomp Technology is offering industrial X-ray inspection systems for nondestructive material testing which can fit in any manufacturing process and guarantee highest quality and safety standards for industrial products.
1. Full cycle support from products design to testing procedures and high-quality service
2. Individual customer-oriented approach in product design and specification in conjunction with high-quality element base and high efficiency information processing algorithms
3. Full computer support modules of automated measurement control
4. Highly accurate detection of defects in manual and automatic modes
5. Visualization of control process in real time
Most NDT X-ray systems could provide quality assurance in a variety of settings, which include but are not limited to:
Aviation
Construction
Manufacturing
Industrial Plants (Nuclear, Petrochemical, Power, Refineries, Fabrication Shops, etc.
Pipelines
Railways
Food industry
| System Parameters | Dimensions | 2230mm*1582mm*2478mm(L*W*H) |
| Equipment weight | 5T | |
| Power | 8KW | |
| Maximum penetration(AL/FE) | 150mm/25mm | |
| Detection range | Φ500*800mm | |
| Load weight | 100kg | |
| Work environment | 5-40° ≤80%HR | |
| Install power | Three-phase five wire system AC380V | |
| X-ray leakage dose rate | ≤1uSv/h | |
| X-ray Generator | Tube voltage | 225kV |
| Power | 640W/1600W | |
| Focal size | 1.0mm/3.0mm | |
| Detector | Image area | 215mm x 215mm |
| Resolution | 2.8LP/mm | |
| Detector ( Selection FPD ) | Image area | 250mm x 300mm |
| Pixel matrix | 1792mm*2176mm | |
| Pixel size | 139μm | |
| Frame rate | 9fps(1x1)30fps(2x2) | |
-
