Food X Ray Inspection System For Checking Foreign Matters Within Packaged Food

Name: Food X Ray Inspection System For Checking Foreign Matters Within Packaged Food
Brand: UNICOMP
SKU: UNX6030N
Rating: 4.6 (114 reviews)

Large Image : Food X Ray Inspection System For Checking Foreign Matters Within Packaged Food

Product Details:

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	UNX6030N

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	can negotiate
Packaging Details:	Unicomp Wood.
Delivery Time:	15 days
Payment Terms:	L/C, T/T
Supply Ability:	100set/montrh

Contact Now

Detailed Product Description

Machine Weight:	800kg	X-ray Tube:	80-120kv/210-480W
Power Supply:	AC 110/220V, 50/60Hz	Max. Loading Weight:	15kg
Conveyor Speed:	10-60M/min
High Light:	Packaged Food X ray Inspection System , Packaged Food X Ray Machine , Foreign Matters X ray Inspection System

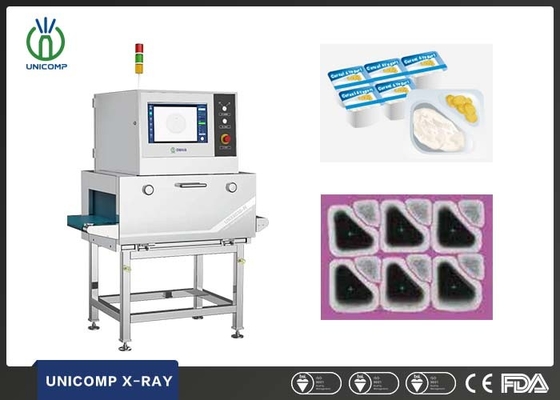

Food X ray Inspection System for Checking Foreign Matters within Packaged Food

APPLICATION

UNX6030-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.

FEATURES

Easy to Operate: one button start&stop, optional default product
Provide High precision automatic foreign detection, It can effectively identify metal, ceramic, glass, bone, shell and other malignant foreign matter in the product
Tool free for conveyor belt and protective curtains
The detection sensitivity reaches the industry's highest standard Intelligent algorithm based on in-depth learning of AI
Sensitivity adjustment, alarm management, powerful data statistics report

DetectionImage

Technical Specifications

Equipment Features	Dimension	1500(W)X1300(D)X2050(H)mm
	Machine weight	800kg
	X-ray tube	80- 120kv/210-480W
	Power Supply	AC 110/220V, 50/60Hz
	Max. Loading weight	15kg
	X-ray detector	Diode array with 0.4mm resolution
	Channel size	400mm(W)* 150mm(H)
	Conveyor Speed	10-60M/min
	Heavy load Conveyor Speed	10-40M/min
	Operating Range	10°C to 40°C (50° F to 104° F) ,30% to 90% relative humidity non-condensing
Capability	Detection Accuracy	SUS BALL≥ø0.3mm
		SUS wire≥ø0.2*2mm
		Glass ball≥ø1.0mm
		Ceramic ball≥ø1.0mm
System Computer	Communications	1LAN,2USB
System Computer	Industrial PC	17"LCD touch screen；Windows 10
Optional configuration	Rejector	Sound-Light alarm, flipper,dropout,air jet, Pusher,chute,shuttle
Other	Ingress protection	Conveyor: IP66, Others: IP65
Other	X-Ray Safety	<1μSv/h

Dimensions and Appearance
