Unicomp Factory Supply X Ray Machine Defects Inspection for Food
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
UNX6030N
Trading Properties
Minimum Order Quantity:
1 set
Price:
can negotiate
Payment Terms:
L/C, T/T
Supply Ability:
100set/montrh
Product Summary
Food X ray Inspection System for Checking Foreign Matters within Packaged Food APPLICATION UNX6030-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits...
Product Details
Highlight:
Food Unicomp X Ray Machine
,Food X Ray Machine
,X Ray Machine for Food
Machine Weight:
800kg
X-Ray Tube:
80-120kv/210-480W
Power Supply:
AC 110/220V, 50/60Hz
Max. Loading Weight:
15kg
Conveyor Speed:
10-60M/min
Product Description

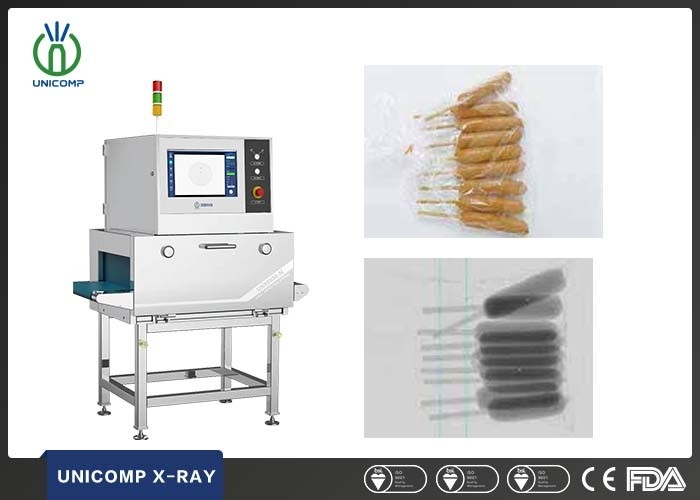

Food X ray Inspection System for Checking Foreign Matters within Packaged Food
APPLICATION
UNX6030-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.
FEATURES
- Easy to Operate: one button start&stop, optional default product
- Sensitivity adjustment, alarm management, powerful data statistics report
- Provide High precision automatic foreign detection, It can effectively identify metal, ceramic, glass, bone, shell and other malignant foreign matter in the product
- Tool free for conveyor belt and protective curtains
- The detection sensitivity reaches the industry's highest standard Intelligent algorithm based on in-depth learning of AI
DetectionImage
Technical Specifications
|
Equipment Features |
Dimension | 1500(W)X1300(D)X2050(H)mm |
| Machine weight | 800kg | |
| X-ray tube | 80- 120kv/210-480W | |
| Power Supply | AC 110/220V, 50/60Hz | |
| Max. Loading weight | 15kg | |
| X-ray detector | Diode array with 0.4mm resolution | |
| Channel size | 400mm(W)* 150mm(H) | |
| Conveyor Speed | 10-60M/min | |
| Heavy load Conveyor Speed | 10-40M/min | |
|
Operating Range |
10°C to 40°C (50° F to 104° F) , 30% to 90% relative humidity non-condensing |
|
|
Capability |
Detection Accuracy |
SUS BALL≥ø0.3mm |
| SUS wire≥ø0.2*2mm | ||
| Glass ball≥ø1.0mm | ||
| Ceramic ball≥ø1.0mm | ||
|
System Computer |
Communications | 1*LAN,2*USB |
| Industrial PC | 17"LCD touch screen；Windows 10 | |
|
Optional configuration |
Rejector |
Sound-Light alarm, flipper,dropout,air jet, Pusher,chute,shuttle |
|
Other |
Ingress protection | Conveyor: IP66, Others: IP65 |
| X-Ray Safety | <1μSv/h |
Dimensions and Appearance
