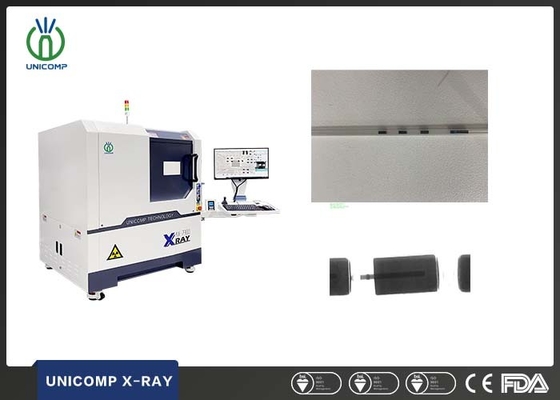

Wire Harness Quality Detection AX7900 Electronics Unicomp X Ray Equipment
Description of IC X-Ray machine AX7900:
APPLICATION of IC Xray machine AX7900:
FEATURES of IC Xray machine AX7900:
Technical Specifications of AX7900
| Item | Definition | Specs |
|
System Summary
|
Footprint
|
1200(W)×1200(D)×1530(H)mm
|
|
Machine Weight
|
1120 kg
|
|
|
Power Supply
|
AC 110/220V, 50/60Hz
|
|
|
Plywood Packing Size
|
1800(W)×1400(D)×1800(H)mm
|
|
|
Packing Weight
|
1330 kg
|
|
|
Power Consumption
|
1.0 kW
|
|
| X-ray Tube |
Tube Type
|
Sealed
|
| Voltage |
0~90kV (Adjustable)
|
|
| Max.Power | 8W | |
|
Focus Spot Size
|
5μm | |
|
Imaging System
|
Detector
|
Flat Panel Detector (FPD)
|
|
Effective Detection Area
|
130*130mm
|
|
|
Pixel Matrix
|
1536*1536mm
|
|
|
Pixel Size
|
85μm
|
|
|
Frame Rates
|
20fps
|
|
|
System Magnification
|
600X
|
|
|
Software
|
Auto-measuring
|
BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
|
|
Multiple Measuring Tools
|
Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
|
|
|
CNC Mode
|
CNC Programmable Inspection, Easy Operation and User Friendly
|
|
|
Real-time Display
|
Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
|
|
|
Navigation
|
Convenient Target Point Positioning System
|
|
|
Motion Control System
|
Movement Control
|
Joystick, Keypad & Mouse
|
|
Max. Loading Area/Weight
|
520*420mm / 10kg
|
|
|
Max. Inspection Area
|
460*400mm
|
|
|
Tilting Angle
|
±25°
|
|
|
Manipulator
|
5-axis with X / Y / Z1 / Z2 / T
|
|
|
Industrial PC
|
Monitor
|
24’’ FHD LCD Display
|
|
System OS
|
Windows 10 64bit
|
|
|
Hard disk
|
1TB
|
|
|
RAM
|
4GB
|
|
|
CPU model
|
Intel i7 Processor
|
|
|
Other Features
|
Energy Saving
|
X-Ray Auto-off when it's out of
work over than 5 minutes
|
|
Authority Management
|
Fingerprint Access Management System, and Support Password
Accessing
|
|
|
X-Ray Safety
|
<1μSv/h (Meets All International Standards)
|
|
|
Safety Operation
|
Electromagnetic Interlock, Warning Light and Real-time Radiation Leakage Monitor
|

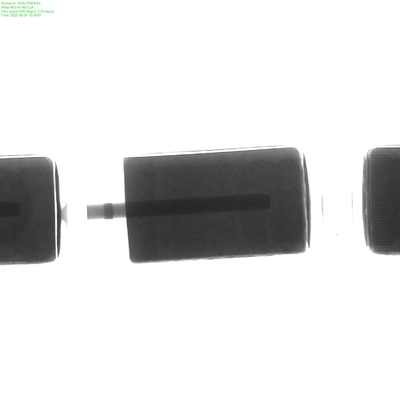

Inspection Images of IC X-Ray machine AX7900:
