100% Domestic Raw Material Unicomp Microfocus X Ray Source for Precise Inspection
Basic Properties
Place of Origin:
China
Brand Name:
Unicomp
Certification:
CE, FDA
Model Number:
UNMS-U110B
Trading Properties
Minimum Order Quantity:
1set
Price:
Can be negotiated
Payment Terms:
T/T, L/C
Supply Ability:
100 Per Month
Product Summary
100% Domestic Raw Material Unicomp Microfocus X Ray Source Key Parameter: Max. Tube Power: 25W Max. Tube Voltage: 110kV Beam Angle: 110±3° Beam Angle: 110±3° Min. Spot Size: ≤5μm Applications: Integrated Circuit Package SMT, PCBA ,Electronic Manufacturing EV Battery IGBT Substrate / Module ...
Product Details
Highlight:
Precise Inspection Microfocus X Ray Source
,Industrial Microfocus X Ray Source
,Unicomp Microfocus X Ray Source
Product Description

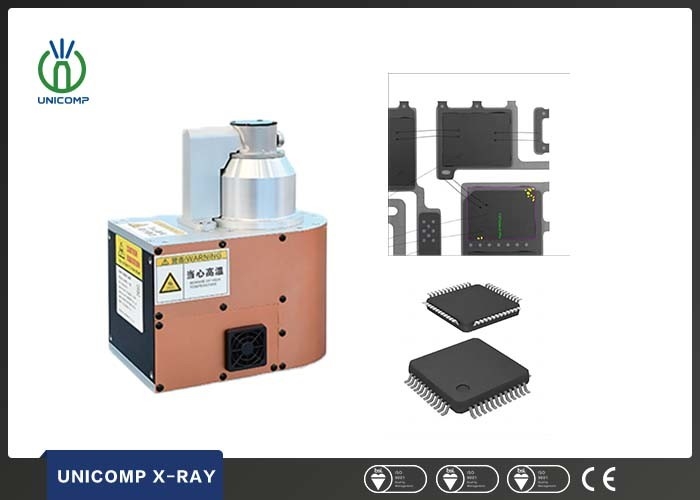

100% Domestic Raw Material Unicomp Microfocus X Ray Source
Key Parameter:
-
Max. Tube Power: 25W
-
Max. Tube Voltage: 110kV
-
Beam Angle: 110±3°
- Beam Angle: 110±3°
-
Min. Spot Size: ≤5μm
Applications:
-

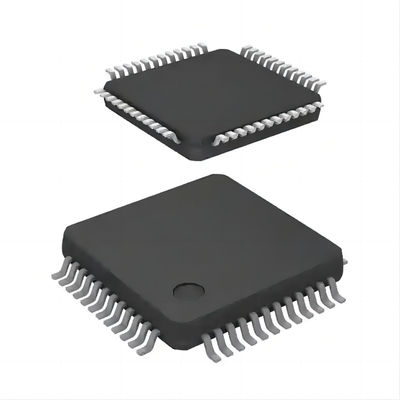

Integrated Circuit Package
-
SMT, PCBA ,Electronic Manufacturing
-
EV Battery
-
IGBT Substrate / Module
Specifications:
| Operating Tube Voltage Range | 40-110 kV |
| Operating Tube Current Range | 0-250 μA |
| Maximum Tube Power | 25W |
| Input Voltage (DC) | 25±0.5V |
| Power Consumption |
＜75W
|
| Window Material/Thickness | Be/0.51mm |
| Window Diameter | 38mm |
| Beam Angle | 110±3° |
| Target Material |
Tungsten
|
| Weight | Approx. 7.7kg |
| FOD | 8.5±0.5mm |
| Safty Interlock | External Short-circuit |
| Control Connection |
Digital Control
|
| Operating Mode | Continuous |

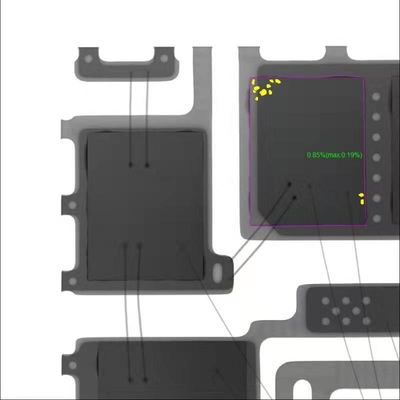

X-ray Images:
Footprint:
