IGBT Defects Control Microfocus X Ray Source Installed on X Ray Detection Machine
Basic Properties
Place of Origin:
China
Brand Name:
Unicomp
Certification:
CE, FDA
Model Number:
UNMS-U150B
Trading Properties
Minimum Order Quantity:
1set
Price:
Can be negotiated
Payment Terms:
T/T, L/C
Supply Ability:
100 Per Month
Product Summary
Chinese Factory X Ray Source for X Ray Inspection Machine to check IGBT Key Parameter: Max. Tube Power: 60W Max. Tube Voltage: 150kV Beam Angle: 110±3° Min. Spot Size: ≤7μm Applications: Integrated Circuit Package EV Battery SMT, PCBA ,Electronic Manufacturing IGBT Substrate / Module Specifications: ...
Product Details
Highlight:
Defects Control Microfocus X Ray Source
,IGBT Microfocus X Ray Source
,Detection Machine Microfocus X Ray Source
Product Description

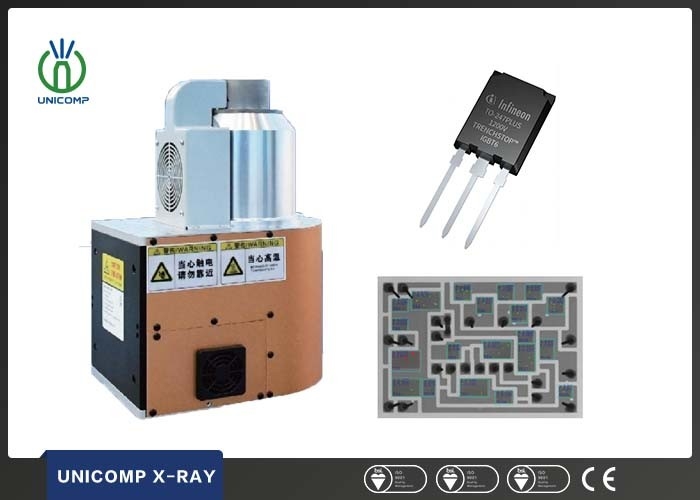

Chinese Factory X Ray Source for X Ray Inspection Machine to check IGBT
Key Parameter:
-
Max. Tube Power: 60W
-
Max. Tube Voltage: 150kV
-
Beam Angle: 110±3°
-
Min. Spot Size: ≤7μm
Applications:
-
Integrated Circuit Package
-
EV Battery
-
SMT, PCBA ,Electronic Manufacturing
-

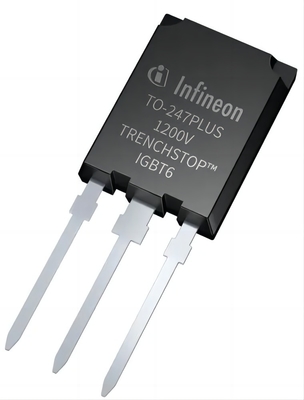

IGBT Substrate / Module
Specifications:
| Operating Tube Voltage Range | 40-150 kV | ||
| Operating Tube Current Range | 0-400 μA | ||
| Maximum Tube Power | 60W | ||
|
＜150W | ||
| Input Voltage (DC) |
48±0.5V
|
||
| Window Material/Thickness | Be/0.51mm | ||
| Window Diameter | 38mm | ||
| Beam Angle | 100±3° | ||
| Target Material |
Tungsten
|
||
| Weight | Approx.15kg | ||
| FOD | 12±0.5mm | ||
| Safty Interlock | External Short-circuit | ||
|
Continuous
|
||
| Control Connection | Digital Control |
X-ray Images:
Footprint:
