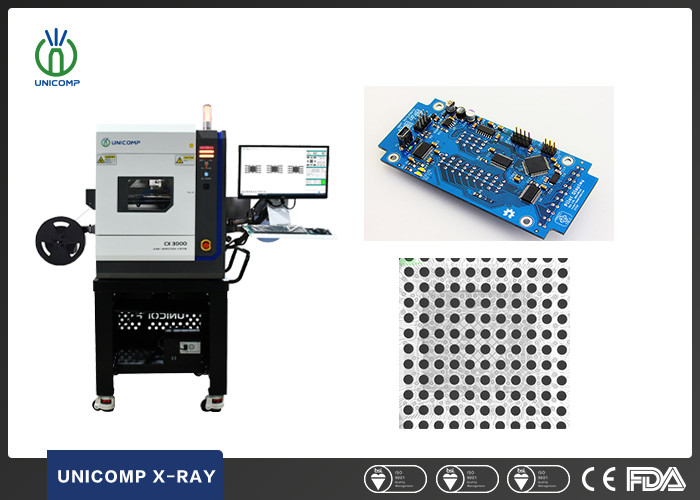

Unicomp X-ray CX3000 With Compact Size And Multi-functions

Basic Properties
Place of Origin: China
Brand Name: Unicomp
Certification: CE, FDA
Model Number: CX3000
Trading Properties
Minimum Order Quantity: 1 PCS
Price: can negotiate
Payment Terms: T/T,L/C
Supply Ability: 30 sets per month
Tags

x ray equipment

electronics x ray system

electronic inspection equipment
Product Summary
Compact size Electronics X Ray Machine with moving wheels CX3000 Application of SMT X-Ray machine BGA, CSP, LED, Flip Chip, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Aerospace Components, Photovoltaic Industry, Other Special Industries. FEATURES of Desktop X...

Product Details

Highlight:

Multi-functions Unicomp X-ray CX3000

,

Compact Size Unicomp X-ray CX3000

,

Compact Unicomp X-ray machine
Name: Electronics X Ray Machine
Footprint: 800(L)×870(W)×1550(H)mm
Machine Weight: 800 Kg
Power Supply: AC 110/220V, 50/60Hz
Plywood Packing Size: 2100(W)×1600(D)×1300(H)mm
Packing Weight: 920kg (include Desk)
Power Consumption: 1.0 KW
Product Description

Compact size Electronics X Ray Machine with moving wheels CX3000





Application of SMT X-Ray machine

BGA, CSP, LED, Flip Chip, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Aerospace Components, Photovoltaic Industry, Other Special Industries.



FEATURES of Desktop X-ray machine



1. Super Compack and Desk-top Design

2. Multi-function X-Ray Inspection

3. Different Inspection Mode

4. Portable with Wheels

5. Status Light and Emergency Button

6. Safety Electromagnetic Interlock







Description Of SMT X-Ray machine

Widely applied for Electronics components in Tape & Reel, JEDEC Tray and Tube package, PCBA, BGA, CSP, Flip Chip, LED, Fuse,
Diode, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Aerospace Components,
Photovoltaic Industry, etc.





Specification Of Desktop X-Ray machine

Item Definition Specs
X-Ray Tube
Tube Type
Sealed
Voltage
0~90kV (Adjustable)
Max. Power
8W
Focus Spot Size
5μm
Imaging System
Detector
Flat Panel Detector (FPD)
Effective Detection Area
130*130mm
Pixel Matrix
1536*1536
Pixel Size
85μm
Frame Rates
20fps
System Magnification
200X
Software
Auto-measuring
Internal defects of electronic components, PCBA welding quality Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools
Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
Real-time Display
Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation
Navigation in Visual Windows
User Friendly
Automatic conveying of reel to reel components, Easy Operation and User Friendly
Motion Control System
 Manipulator
3-axis with X / Y / Z
Max. Loading Area/Weight
300*350mm / 5kg
Max. Inspection Area
255*330mm
Movement Control
 Keypad & Mouse





FAQ:

1. How about the package? Is it safe during the delivery?

All X-ray inspection machine is packed with standard wooden solid carton. It is safe when shipping.



2. Do you provide the Warranty? How about the after-sales service?

1-year warranty free for spare parts, Whole life technical support.

We have a professional after-sales team, if any questions, assistant videos are also provided in the after-sale service.



3. If we come to your factory if you will provide free training?

Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.





Our Services

  • Help customers analyze product projects and provide detection solutions.
  • Provide professional detection solutions.
  • We have skilled jig design services.
  • 24-hour feedback speed by email to others.
  • Free sample detection test.
  • Provide shipping/delivery information checking service.
  • One year guarantee, all life maintain promise.
