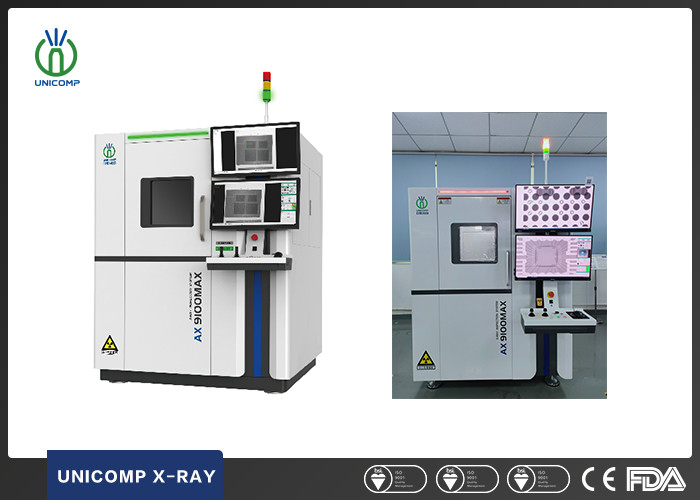

Unicomp X-ray System AX9100max For Internal Defect Inspection Of Electronic Components
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
AX9100max
Trading Properties
Minimum Order Quantity:
1 set
Price:
can negotiate
Payment Terms:
L/C, T/T
Supply Ability:
100set/montrh
Product Summary
Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Photovoltaic Industry, etc. Application Fields Functions and Feature Inspection Image System Summary Footprint 1450(W)×1680(D)×1850(H)mm Machine ...
Product Details
Highlight:
unicomp x-ray system ax9100max
,Internal Defect Inspection X-ray System
,X-ray System for Electronic Components
Product Description
Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Photovoltaic Industry, etc.
-
Application Fields
-
Functions and Feature
-
Inspection Image
| System Summary | |
| Footprint | 1450(W)×1680(D)×1850(H)mm |
| Machine Weight | 2400 kg |
| Power Supply | 220AC/50Hz |
| Packaging Dimension | 1710(W)×1950(D)×1875(H)mm |
| Packing Weight | 2600 kg |
| Power Consumption | 3.5 kW |
| X-Ray Tube | |
| Tube Type Type | Sealed type |
| Max. Power Output | 65W |
| Voltage | 0~130kV (Adjustable) |
| Focus Spot Size | ≤8μm |
| Imaging System | |
| Detector | High Resolution FPD |
| Pixel Size | ≤85μm |
| Effective Detection Area | 130*130mm |
| Frame Rates | 20fps |
| Pixel | 1536*1536 |
| System Magnification | 1600X |
| Software | |
| One-click Zoom in & out | Fast & Automatic navigation of ROI region |
| Fixed-point following during FPD tilting | Table automatic following while Axis tilting seperately |
| Algorithms For Image Super-Resolution Reconstruction | Intelligently improve the overall image clarity with one-click |
| Automatic images comparison | Intelligently adjust overall image contrast with one-click |
| Variety of filter processing algorithms | Sharpening, enhancement, color reversal, denoising image preprocessing functions |
| Motion Control System | |
| Movement Control Method | Dual Joystick, Keypad & Mouse |
| Max. Loading size | Ф620mm |
| Max. Inspection size | 600*450mm |
| Tilting Inspection | Maximum 60° |
| Objective Stage | Horizontal Rotation 360° |
| Industrial PC | |
| Monitor(Dual) | 27 "4K HD display |
| Operating System | Windows 10 64bit |
| Hard disk | 1TB |
| RAM | 16G |
| CPU model | Intel i7 Processor |
| Other Features | |
| Door Open | Manually |
| Safety Operation | Electromagnetic Interlock, Warning Light and Real-time Radiation Leakage Monitor |
| Authority Management | Fingerprint Access Management System, and Support Password Accessing |
| X-Ray Safety | <1μSv/h (Meets All International Standards) |
* Specifications are subject to change without notice, All trademarks are the property of the system maker.
-

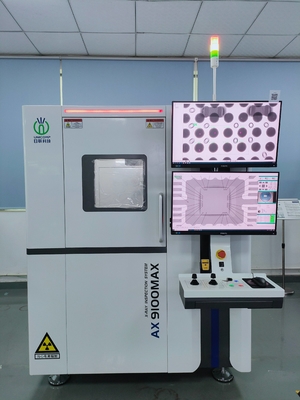

Dimensions and Appearance
