Machine Weight: | 2400kg | ||
---|---|---|---|

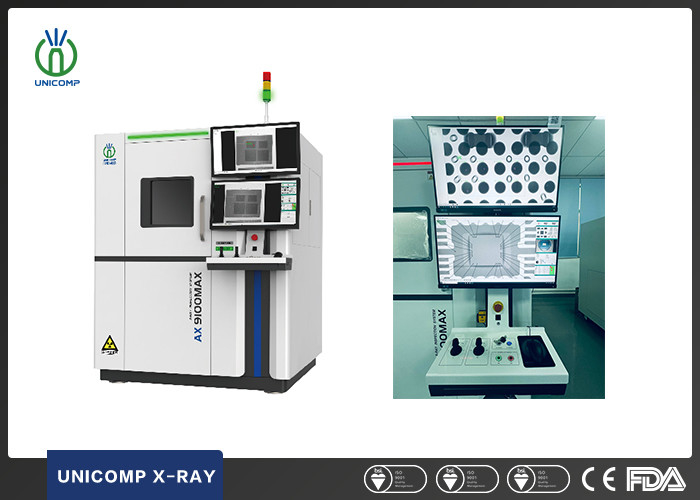

High Light: | AX9100max Electronics X Ray Machine,Fixed-point Following X Ray Machine |
Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Photovoltaic Industry, etc.
Application Fields
Functions and Feature
Inspection Image
System Summary | |
Footprint | 1450(W)×1680(D)×1850(H)mm |
Machine Weight | 2400 kg |
Power Supply | 220AC/50Hz |
Packaging Dimension | 1710(W)×1950(D)×1875(H)mm |
Packing Weight | 2600 kg |
Power Consumption | 3.5 kW |
X-Ray Tube | |
Tube Type Type | Sealed type |
Max. Power Output | 65W |
Voltage | 0~130kV (Adjustable) |
Focus Spot Size | ≤8μm |
Imaging System | |
Detector | High Resolution FPD |
Pixel Size | ≤85μm |
Effective Detection Area | 130*130mm |
Frame Rates | 20fps |
Pixel | 1536*1536 |
System Magnification | 1600X |
Software | |
One-click Zoom in & out | Fast & Automatic navigation of ROI region |

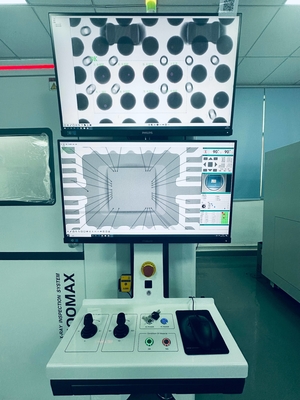

Fixed-point following during FPD tilting | Table automatic following while Axis tilting seperately |
Algorithms For Image Super-Resolution Reconstruction | Intelligently improve the overall image clarity with one-click |
Automatic images comparison | Intelligently adjust overall image contrast with one-click |
Variety of filter processing algorithms | Sharpening, enhancement, color reversal, denoising image preprocessing functions |
Motion Control System | |
Movement Control Method | Dual Joystick, Keypad & Mouse |
Max. Loading size | Ф620mm |
Max. Inspection size | 600*450mm |
Tilting Inspection | Maximum 60° |
Objective Stage | Horizontal Rotation 360° |
Industrial PC | |
Monitor(Dual) | 27 "4K HD display |
Operating System | Windows 10 64bit |
RAM | 16G |
Hard disk | 1TB |
CPU model | Intel i7 Processor |
Other Features | |
Door Open | Manually |
Safety Operation | Electromagnetic Interlock, Warning Light and Real-time Radiation Leakage Monitor |
Authority Management | Fingerprint Access Management System, and Support Password Accessing |
X-Ray Safety | <1μSv/h (Meets All International Standards) |
* Specifications are subject to change without notice, All trademarks are the property of the system maker.
