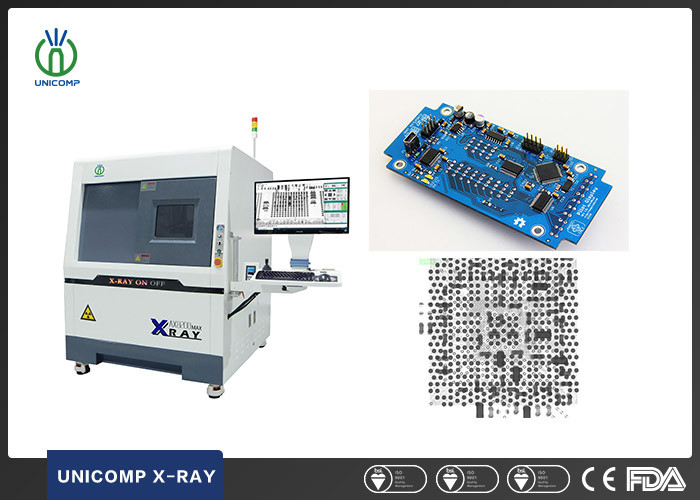

Unicomp X-ray System AX8200max With Multiple Measuring Tools

Certification
China Unicomp Technology certification
China Unicomp Technology certification
Customer Reviews
Stable product quality , reliable cooperation partner

—— Mr. Smith

Unicomp Techology is really impressive.

—— Selvam N

You are good and reliable supplier again thanks

—— Mr. Merlin Euphemia

The feedback we got from the unit we purchased is so far very good. The client is happy.

—— Mr. Nicholas

A professional service team Life-long free software upgrading Timely technical support

—— Ms Rein

We have visited Unicomp . It is big company in China . And their engineers are so professional .

—— Mr Okan

Scheduled call & visits Onsite installation, debugging and training services

—— Mrs Yulia

Nice work on the X-Ray machine!

—— Qusaay Albayati

I'm Online Chat Now

Unicomp X-ray System AX8200max With Multiple Measuring Tools

Unicomp X-ray System AX8200max With Multiple Measuring Tools
Unicomp X-ray System AX8200max With Multiple Measuring Tools

Large Image :  Unicomp X-ray System AX8200max With Multiple Measuring Tools

Product Details:
Place of Origin: China
Brand Name: Unicomp
Certification: CE, FDA
Model Number: AX8200MAX
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: can negotiate
Packaging Details: Wooden Case, Waterproof, Anti-collision
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 300 pcs per month
Detailed Product Description
Tube Voltage: 0~90kV (Adjustable) Tube Type: Sealed
Focus Spot Size: 5μm Detector: Flat Panel Detector (FPD)
Packing Weight: 1500 Kg Power Supply: AC 110~220V, 50/60Hz
Highlight:

Unicomp X-ray system AX8200max

,

Multiple Measuring X-ray System

,

Unicomp X-ray System

Unicomp AX8200Max microfocus X-ray Inspection System for Semiconductor BGA IC Cable & wires qualtiy inspection



Specification Of SMT X Ray machine

System Summary
Footprint 1280(W)×1500(D)×1705(H)mm
Machine Weight 1400 kg
Power Supply AC 110~220V, 50/60Hz
Plywood Packing Size 175(W)×155(D)×200(H)cm
Packing Weight 1500 kg
Power Consumption 1.0 kW
X-Ray Tube
Tube Type Sealed
Max. Power 8W
Voltage 0~90kV (Adjustable)
Focus Spot Size 5μm
Imaging System
Detector Flat Panel Detector (FPD)
Pixel Size 85μm
Effective Detection Area 130*130mm
Frame Rates 20fps
Pixel Matrix 1536*1536
System Magnification 600X
Software
Auto-measuring BGA Soldering Voids Auto-measuring and Support Data/Graphic Output
Multiple Measuring Tools Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc.
CNC Mode CNC Programmable Inspection, Easy Operation and User Friendly
Real-time Display Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc
Navigation Convenient Target Point Positioning System
Motion Control System
Movement Control Joystick, Keypad, Mouse &Touch Panel
Max. Loading Area/Weight 610*610mm / 10kg
Max. Inspection Area 550*550mm
Oblique Views Max. 60°
Manipulator 6-axis with X / Y / Z1 / Z2 / T1 / T2
Industrial PC
Monitor 24’’ FHD Interactive Touch LCD Display
System OS Windows 10 64bit
Hard disk 1TB
RAM 8GB
CPU model Intel i7 Processor
Other Features
Door Open Electric Sliding
X-Ray Safety <1μSv/h (Meets All International Standards)
Authority Management Fingerprint Access Magnagement System, and Support Password Accessing.
Safety Operation Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor
* Specifications are subject to change without notice, All trademarks are the property of the system maker.





Application Fields of X-ray machine



Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables,Aerospace Components, Photovoltaic Industry, etc.





Function & Features of X-ray machie



Unicomp X-ray System AX8200max With Multiple Measuring Tools 0

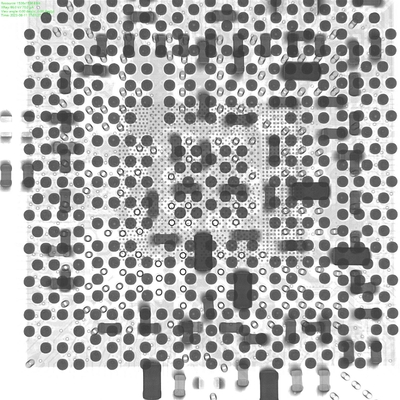

Inspection Images of SMT Xray machine



Sealed Tube Unicomp X Ray Interactive Touch 90kV Benchtop For Indwelling Needle 0
