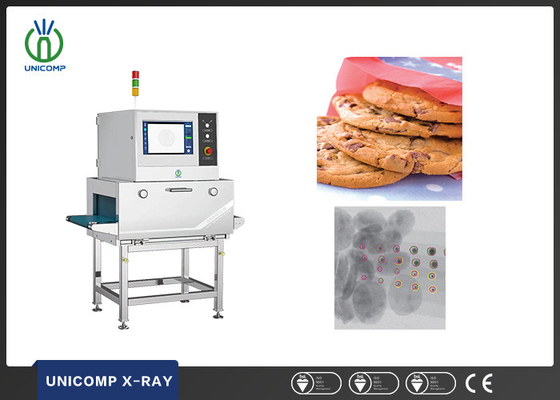

Unicomp Foreign Material Stone Glass Metal Ceramic X Ray Detection Machine For Food Package

Basic Properties
Place of Origin: China
Brand Name: Unicomp
Certification: CE
Model Number: UNX4015N
Trading Properties
Minimum Order Quantity: 1 PCS
Price: USD
Payment Terms: T/T, L/C
Supply Ability: 100 pcs per month
Product Summary
Food Impurity Real Time Inline Detection UNX4015N For Food-Packing Quality Inspection Application UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, ...

Product Details

Highlight:

Ceramic X Ray Detection Machine

,

Food Package X Ray Detection Machine

,

Metal X Ray Detection Machine

Machine Weight: 500kg
X-Ray Tube: 80-120kv/210-480W
Power Supply: AC 110/220V, 50/60Hz
Max. Loading Weight: 10kg
X-Ray Detector: Diode Array With 0.4mm Resolution
Product Description

Food Impurity Real Time Inline Detection UNX4015N For Food-Packing Quality Inspection





Application



UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.



Features

  • Unicomp Foreign Material Stone Glass Metal Ceramic X Ray Detection Machine For Food Package 0Easy to Operate: one button start&stop, optional default product

  • Unicomp Foreign Material Stone Glass Metal Ceramic X Ray Detection Machine For Food Package 0Provide High precision automatic foreign detection, It can effectively identify metal, ceramic, glass, bone, shell and other malignant foreign matter in the product

  • Unicomp Foreign Material Stone Glass Metal Ceramic X Ray Detection Machine For Food Package 0Sensitivity adjustment, alarm management, powerful data statistics report

  • Unicomp Foreign Material Stone Glass Metal Ceramic X Ray Detection Machine For Food Package 0The detection sensitivity reaches the industry's highest standard Intelligent algorithm based on in-depth learning of AI

  • Unicomp Foreign Material Stone Glass Metal Ceramic X Ray Detection Machine For Food Package 0Tool free for conveyor belt and protective curtains

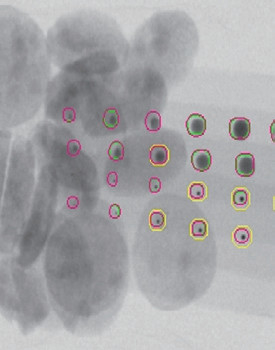

X-ray images

Unicomp Foreign Material Stone Glass Metal Ceramic X Ray Detection Machine For Food Package 5



Specificaitions



Equipment
Features
Dimension 1168(W)X985(D)X1510(H)mm
Machine weight 500kg
X-ray tube 80-120kv/210-480W
Power Supply AC 110/220V, 50/60Hz
Max. Loading weight 10kg
X-ray detector Diode array with 0.4mm resolution
Channel size 400mm(W)*150mm(H)
Conveyor Speed 10-60M/min
Heavy load Conveyor Speed 10-40M/min
Operating Range 10°C to 40°C (50°F to 104°F),30% to 90% relative humidity non-condensing
Capability Detection Accuracy SUS BALL≥ø0.3mm
SUS wire≥ø0.2*2mm
Glass ball≥ø1.0mm
Ceramic ball≥ø1.0mm
System Computer Communications 1*LAN,2*USB
Industrial PC 17"LCD touch screen;Windows 10
Optional configuration Rejector

Sound-Light alarm, flipper,dropout,air jet,

Pusher,chute,shuttle

Other Ingress protection Conveyor: IP66, Others: IP65
X-Ray Safety <1μSv/h



Dimensions and Appearance

Unicomp Foreign Material Stone Glass Metal Ceramic X Ray Detection Machine For Food Package 6
