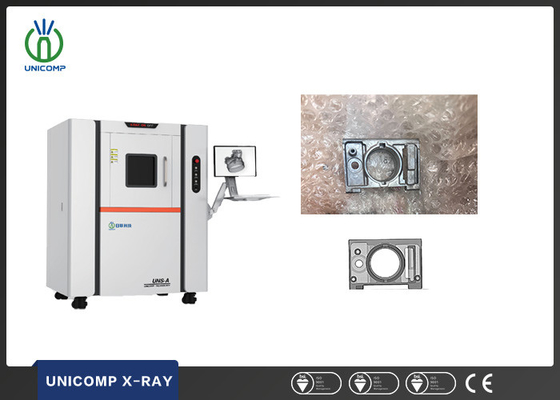

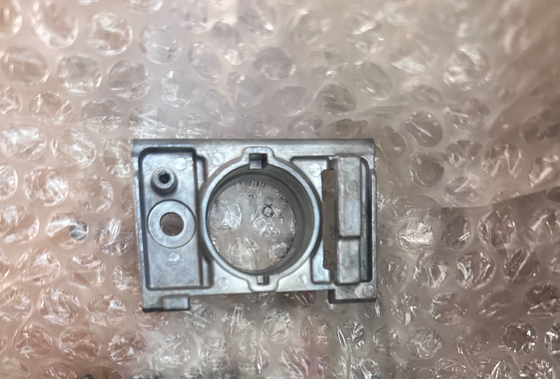

High Resolution NDT X-Ray Machine UNS160 For Small Casting Parts Inner Defects Recognition
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE
Model Number:
UNS160-A
Trading Properties
Minimum Order Quantity:
1Set
Price:
can negotiate
Payment Terms:
T/T, L/C
Supply Ability:
10 sets per month
Product Summary
NDT UNS160 X Ray Equipment Applications of NDT X-ray Machine UNS 160-A : various types of metal castings hardware products plastic products refractory materials resin materials review conduct non-destructive testing on various small and micro products such as materials FAQ: 1. How about the package? ...
Product Details
Highlight:
NDT X-Ray machine UNS160
,High Resolution NDT X-Ray Machine
,Casting Parts NDT X-Ray Machine
Product Description
NDT UNS160 X Ray Equipment
Applications of NDT X-ray Machine UNS 160-A :
- various types of metal castings
- hardware products
- plastic products
- refractory materials
- resin materials
- review conduct non-destructive testing on various small and micro products such as materials
FAQ:
1. How about the package? Is it safe during the delivery?
All X-ray inspection machine is packed with standard wooden solid carton. It is safe when shipping.
2. Do you provide the Warranty? How about the after-sales service?
1-year warranty free for spare parts, Whole life technical support.
We have a professional after-sales team, if any questions, assistant videos are also provided in the after-sale service.
3. If we come to your factory if you will provide free training?
Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.
Technical Specifications of NDT X-ray Machine UNC160
| System Parameters | size | 1500mm*1068mm*1794mm |
| Equipment weight | 2000kg | |
| Power | 6KW | |
| Package size |
1820*1560*2150mm
|
|
| X-ray light pipe | Light pipe type | Closed integrated tube |
| tube voltage | 160kv | |
| focus size | 0.5mm | |
| Light tube power | 480w | |
| imaging system | detector | Amorphous silicon |
| Effective imaging area |
427*427[mm]
|
|
| Pixel size |
139μm
|
|
| pixel matrix |
3072*3072
|
|
| Motion Control System | motion control mode | CNC automatic detection/manual detection |
| Detection imaging method | left and right transillumination | |
| Stage rotation angle |
±360°
|
|
| Maximum load weight |
30KG
|
|
| Maximum detection range |
φ400*500[mm]
|
|
| Mechanism movement speed |
≥70mm/s
|
Features of NDT X-ray Machine UNS160:
- High cost performance: Specially designed for small/micro product testing, high concentration
- Perfect design, complete functions and compact structure.
- High security: High level of protection, radiation dose is far lower than other countries
- Standard; equipped with multiple safety protection measures.
- Excellent image processing: One-click optimization processing, simple operation Fast, HD image quality.
- High detection efficiency: It has a convenient and efficient control system; it has CNC automatic detection function; it has fast movement speed.

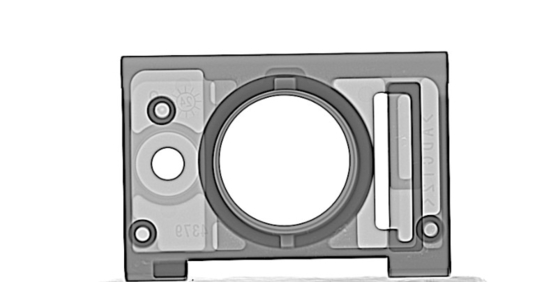

Inspection Images
