High Resolution Diode Array X Ray Detector for Snack Foods Foreign Matters Detection
Basic Properties
Place of Origin:
China
Brand Name:
Unicomp
Certification:
CE
Model Number:
UNX4015N
Trading Properties
Minimum Order Quantity:
1 PCS
Price:
USD
Payment Terms:
T/T, L/C
Supply Ability:
100 pcs per month
Product Summary
UNX 4015 X-ray system for Prawn candy vegetable poultry dumplings foreign matters detection APPLICATION UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, ...
Product Details
Highlight:
High Resolution X Ray Detector
,X Ray Detector for Snack Foods
,Foreign Matters X Ray inspection system
Machine Weight:
450kg
X-Ray Tube:
80kv/210-350W
Power Supply:
AC 220V, 1.5KVA, 50/60Hz
Max. Loading Weight:
10kg
X-Ray Detector:
Diode Array With 0.4mm Resolution
Conveyor Speed:
10-70m/min
Heavy Load Conveyor Speed:
10-40m/min
Alarm Method:
Audible Alarm
Product Description

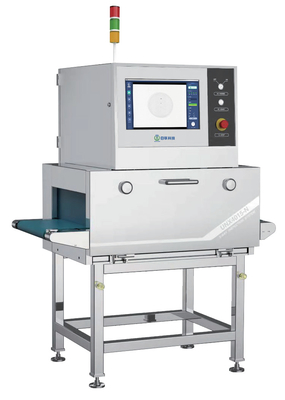

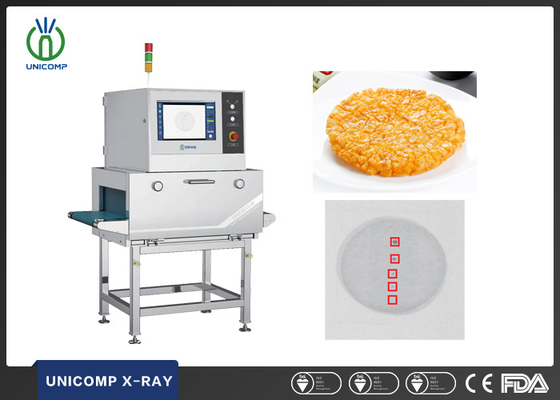

UNX 4015 X-ray system for Prawn candy vegetable poultry dumplings foreign matters detection
APPLICATION
UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.
Features
- Provide High precision automatic foreign detection, It can effectively identify metal, ceramic, glass, bone, shell and other malignant foreign matter in the product
- Sensitivity adjustment, alarm management, powerful data statistics report
- The detection sensitivity reaches the industry's highest standard Intelligent algorithm based on in-depth learning of AI
- Tool free for conveyor belt and protective curtains
Technical Specifications
| Equipment Features |
Dimension | 1180(W)X985(D)X1860(H)mm |
| Machine weight | 450kg | |
| X-ray tube | 80kv/210-350W | |
| Power Supply | AC 110/220V, 50/60Hz | |
| Max. Loading weight | 10kg | |
| X-ray detector | Diode array with 0.4mm resolution | |
| Channel size | 400mm(W)*150mm(H) | |
| Conveyor Speed | 10-70m/min | |
| Heavy load Conveyor Speed | 10-40m/min | |
| Operating Range | 10°C to 40°C (50°F to 104°F),30% to 90% relative humidity non-condensing | |
| Capability | Detection Accuracy | SUS BALL≥ø0.3mm |
| SUS wire≥ø0.2*2mm | ||
| Glass ball≥ø1.0mm | ||
| Ceramic ball≥ø1.0mm | ||
| System Computer | Communications | 1*LAN,2*USB |
| Industrial PC | 17"LCD touch screen；Windows 10 | |
| Optional configuration | Rejector |
Sound-Light alarm, flipper,dropout,air jet, Pusher,chute,shuttle |
| Other | Ingress protection | Conveyor: IP66, Others: IP65 |
| X-Ray Safety | <1μSv/h |

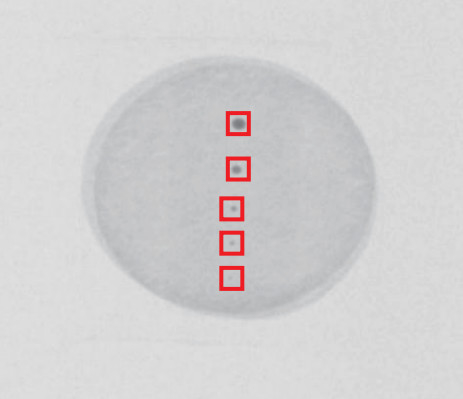

Detection Image
