Casting X-Ray Machine Unicomp UNZ225 For Aluminum Castings Steering Casting Non-Destrcutive Testing
Product Details
Aluminum Castings X-Ray Machine
,Non-Destrcutive Testing X-Ray Machine
,Steering Casting X-Ray Machine

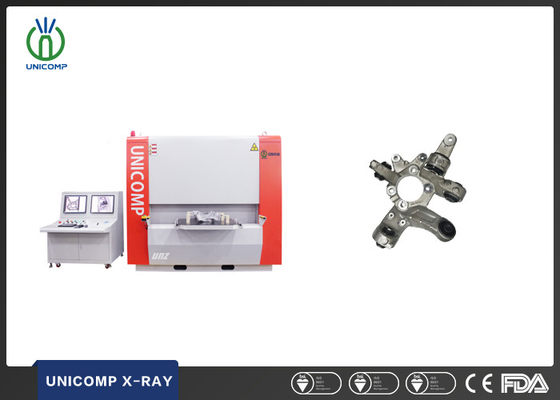

Casting X-ray machine Unicomp UNZ225 for aluminum castings steering casting non-destrcutive testing
The UNZ series is one of Unicomp Technology most popular models for aluminum casting, aerospace components and steel pipe. It offers an excellent balance of power and space sensitivity. The system can handle products up to 120cm in size while seated nicely in your failure analysis lab or busy production line.
Product Features
- The pallet inspection platform can realize the mixed inspection of a variety of small-size workpieces.
- Double station mechanism, loading and unloading and detection are carried out at the same time, with high detection efficiency.
- Option for ADR.
SYSTEM CAPABILITIES

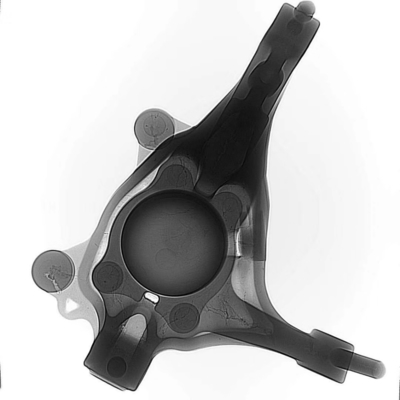

Advanced 2D X-ray inspection
Overall Maximum System Resolution: ~5 microns
120cm diameter x 120cm tall nominal part envelope
Comprehensive acquisition, processing and archival program with user-friendly interface
High performance image processing and measurement functions
Non-proprietary multiple image format
X-RAY SOURCE
Micro-focus X-ray tube
Voltage Range: 225 kV
Minimum Focal Spot Size: ~5 microns
X-RAY DETECTOR
Digital X-ray detector types: Flat Panel
Grade Options: Standard, Premium,
Detector Size: up to 120 cm x 120 cm
MANIPULATOR
Maximum Sample Weight: 300kg
CABINET
External Dimension: 3200mm*3873mm*3277mm(L*W*H)
Cabinet Features: interior lighting, sliding access door, leaded glass viewing window
Exact specifications vary depending on tube, detector, and other optional configurations.
Most NDT X-ray systems could provide quality assurance in a variety of settings, which include but are not limited to:
Aviation
Construction
Manufacturing
Industrial Plants (Nuclear, Petrochemical, Power, Refineries, Fabrication Shops, etc.
Pipelines
Railways
-
