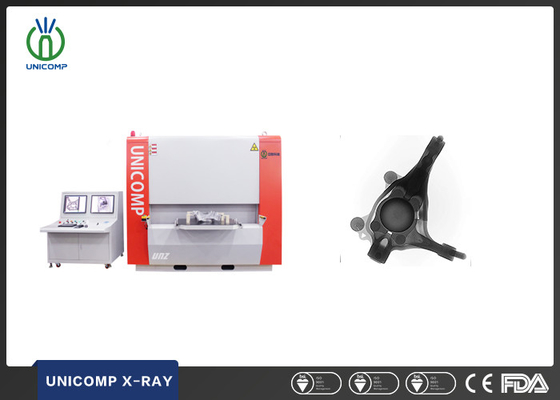

Unicomp Digital Radiography X-Ray Machine UNZ225 With Rotation Table For Steering Knuckle Testing

Basic Properties
Place of Origin: China
Brand Name: UNICOMP
Certification: CE
Model Number: UNZ225
Trading Properties
Minimum Order Quantity: 1Set
Price: Can Negotiate
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Tags

automatic x ray machine

ndt x ray machine

x ray machine for manufacturing
Product Summary
Unicomp Digital radiagraphy X-ray machine UNZ225 with rotation table for steering knuckle testing The UNZ series is one of Unicomp Technology most popular models for aluminum casting, aerospace components and steel pipe. It offers an excellent balance of power and space sensitivity. The system can ...

Product Details

Highlight:

Steering Knuckle X-Ray Machine

,

X-Ray Machine With Rotation Table

,

Digital Radiography X-Ray Machine
Origin: China
Load Weight: 300KG
Tube Voltage: 225KV
Dimension: 3200mm*3873mm*3277mm（L*W*H）
Generator Power: 800w/1800w
Brand: Unicomp
Product Description

Unicomp Digital radiagraphy X-ray machine UNZ225 with rotation table for steering knuckle testing



The UNZ series is one of Unicomp Technology most popular models for aluminum casting, aerospace components and steel pipe. It offers an excellent balance of power and space sensitivity. The system can handle products up to 120cm in size while seated nicely in your failure analysis lab or busy production line.



Product Features



  • The pallet inspection platform can realize the mixed inspection of a variety of small-size workpieces.
  • Double station mechanism, loading and unloading and detection are carried out at the same time, with high detection efficiency.
  • Option for ADR.



Technical Specifications



  • Tube voltage : 160kV/225kV/320kV/450kV
  • Focal Spot Size : 0.4mm/1.0mm  (EN12543)
  • Equipment Footprint : Can be customized
  • Optional Function : Auto Defects Recognition
  • Inspection Software : Pre-embedded X-Ray Inspection Software





X-RAY SOURCE



Micro-focus X-ray tube



Voltage Range: 225 kV



Minimum Focal Spot Size: ~5 microns





X-RAY DETECTOR



Digital X-ray detector types: Flat Panel



Grade Options: Standard, Premium,



Detector Size: up to 120 cm x 120 cm





MANIPULATOR



Maximum Sample Weight: 300kg





CABINET



External Dimension: 3200mm*3873mm*3277mm(L*W*H)



Cabinet Features: interior lighting, sliding access door, leaded glass viewing window



Exact specifications vary depending on tube, detector, and other optional configurations.






Most NDT X-ray systems could provide quality assurance in a variety of settings, which include but are not limited to:



Aviation



Construction



Manufacturing



Industrial Plants (Nuclear, Petrochemical, Power, Refineries, Fabrication Shops, etc.



Pipelines



Railways
