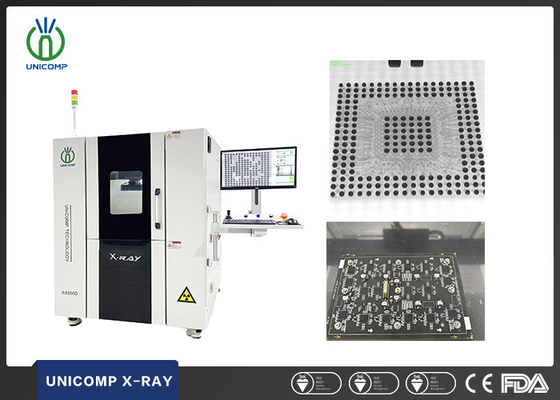

Accurate X-Ray Inspection for PCB Control X-ray Leakage 1uSv/h Voltage 0-110kV Adjustable
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:

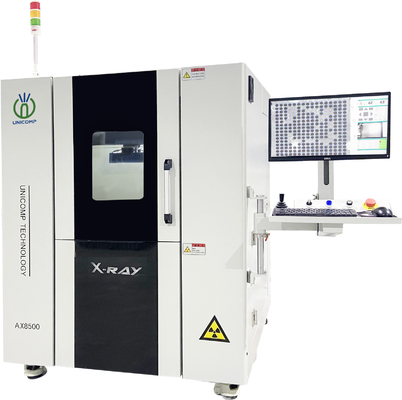

AX8500
Trading Properties
Minimum Order Quantity:
1Set
Price:
can negotiate
Payment Terms:
T/T, L/C
Supply Ability:
300 sets per month
Product Summary
X-Ray Inspection for PCB Quality Control Application of SMT X-Ray machine Widely applied for BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Aerospace Components, Photovoltaic Industry, etc. FEATURES of Desktop X...
Product Details
Highlight:
Adjustable X-Ray Inspection
,PCB Control X-Ray Inspection
,1uSv/h X-Ray Inspection
Name:
X-ray Inspection Machine
Voltage:
0~110kV (Adjustable)
Industry:
Electronics Industry
Footprint:
1250(L)x1300(W)x1900(H)mm
X-Ray Leakage:
< 1uSv/h
Weight:
1500kg
Product Description

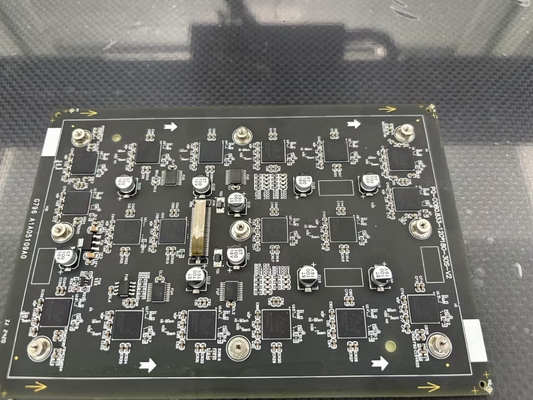

X-Ray Inspection for PCB Quality Control
Application of SMT X-Ray machine
Widely applied for BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting,
Electronic Connector Module, Cables, Aerospace Components, Photovoltaic Industry, etc.
FEATURES of Desktop X-ray machine
- Large Size Inspection Table with 360° rotation Laser Locator for Precise Location
- Maganification (1000X)
- Accurate Control, CNC Programming Automatic Positioning
- FPD 55° Tilting Inspection
- 6-Axis Movement
- Adjustable Console
Specification Of Desktop X-Ray machine
| Item | Definition | Specs |
| X-Ray Tube | Tube Type | Sealed |
| Voltage | 0~110kV (Adjustable) | |
| Max. Power | 25W | |
| Focus Spot Size | 5μm | |
| Imaging System | Detector | Flat Panel Detector (FPD) |
| Effective Detection Area | 129*129mm | |
| Pixel Matrix | 1536*1536(pixel) | |
| Pixel Size | 84μm | |
| Frame Rates | 20fps | |
| System Magnification | 1000X | |
| Software | Auto-measuring |
Internal defects of electronic components, PCBA welding quality Auto-measuring and Support Data/Graphic Output
|
| Multiple Measuring Tools | Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc. | |
| Real-time Display | Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc | |
| Navigation | Navigation in Visual Windows | |
| User Friendly | Automatic conveying of reel to reel components, Easy Operation and User Friendly | |
| Motion Control System | Manipulator |
6-axis with X1 / X2 / Y / Z1 / T (55°) /R (360°)
|
| Max. Loading Area/Weight |
Ф570mm / 10kg
|
|
| Max. Inspection Area | 450*450mm | |
| Movement Control |
Joystick, Keypad & Mouse
|
FAQ:
1. How about the package? Is it safe during the delivery?
All X-ray inspection machine is packed with standard wooden solid carton. It is safe when shipping.
2. Do you provide the Warranty? How about the after-sales service?
1-year warranty free for spare parts, Whole life technical support.
We have a professional after-sales team, if any questions, assistant videos are also provided in the after-sale service.
3. If we come to your factory if you will provide free training?
Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.
Our Services
- Help customers analyze product projects and provide detection solutions.
- Provide professional detection solutions.
- We have skilled jig design services.
- 24-hour feedback speed by email to others.
- Free sample detection test.
- Provide shipping/delivery information checking service.
- One year guarantee, all life maintain promise.
