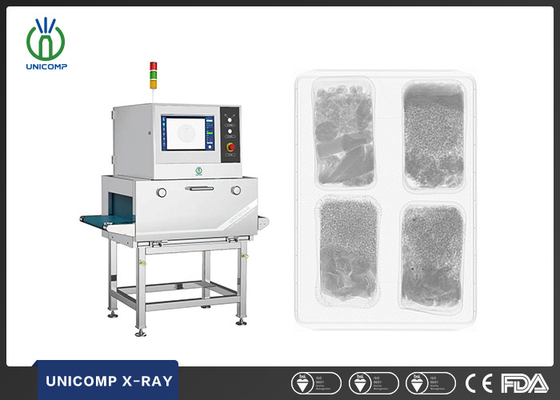

High Resolution Food X-Ray Detection System Unicomp UNX4015N For Airline Catering
Basic Properties
Place of Origin:
China
Brand Name:
Unicomp
Certification:
CE
Model Number:
UNX4015N
Trading Properties
Minimum Order Quantity:
1 PCS
Price:
USD
Payment Terms:
T/T, L/C
Supply Ability:
100 pcs per month
Product Summary
High resolution food X-ray detection system Unicomp UNX4015N for airline catering Application UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, ...
Product Details
Highlight:
High Resolution Food X-Ray System
,Airline Catering X-Ray Detection System
,X Ray machine For Airline Catering
Machine Weight:
450kg
X-Ray Tube:
80kV/210-350W
Power Supply:
AC 110/220V, 50/60Hz
Max. Loading Weight:
10kg
X-Ray Detector:
Diode Array With 0.4mm Resolution
Conveyor Speed:
10-70M/min
Product Description
High resolution food X-ray detection system Unicomp UNX4015N for airline catering
Application
UNX4015-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.
Features
- Easy to Operate: one button start&stop, optional default product
- Provide High precision automatic foreign detection, It can effectively identify metal, ceramic, glass, bone, shell and other malignant foreign matter in the product
Monitoring, controlling, and improving procedures and outputs in manufacturing with SPC report
- With deep learning of AI, the detection sensitivity reaches the industry's highest Intelligent algorithmstandard
Specificaitions
| Equipment Features | Dimension | 1140(W)X1160(D)X1975(H)mm |
| Machine weight | 450kg | |
| X-ray tube | 80kV/210-350W | |
| Power Supply | AC 110/220V, 50/60Hz | |
| Max. Loading weight | 10kg | |
| X-ray detector | Diode array with 0.4mm resolution | |
| Channel size | 400mm(W)*150mm(H) | |
| Conveyor Speed | 10-70M/min | |
| Operating Range | 5°C - 40°C ,RH＜80% | |
| Capability | Detection Accuracy | SUS BALL≥ø0.3mm |
| SUS wire≥ø0.2*2mm | ||
| Glass ball≥ø1.0mm | ||
| Ceramic ball≥ø1.0mm | ||
| System Computer | Communications | 1*LAN,2*USB |
| Industrial PC | 17"LCD touch screen；Windows 10 | |
| Optional configuration | Rejector | Sound-Light alarm, flipper,dropout,air jet, Pusher,chute,shuttle |
| Other | Ingress protection | Conveyor: IP66, Others: IP65 |
| X-Ray Safety | <1μSv/h |

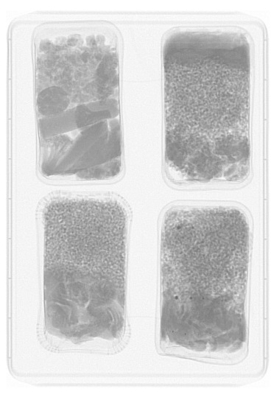

X-ray images

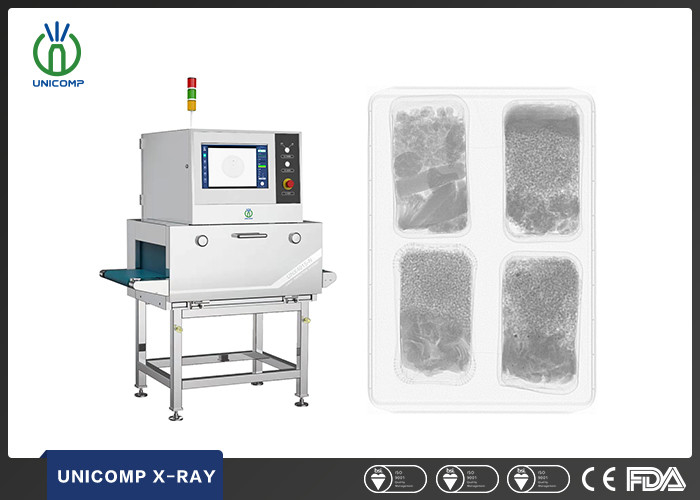

Dimensions and Appearance
Overall Rating
5 star
100%
4 star
0
3 star
0
2 star
0
1 star
0
All Reviews
-
MThe machine is excellent, the service is satisfactory, and the technology is highly professional.
-
Pgood product
-
SStable product quality , reliable cooperation partner
