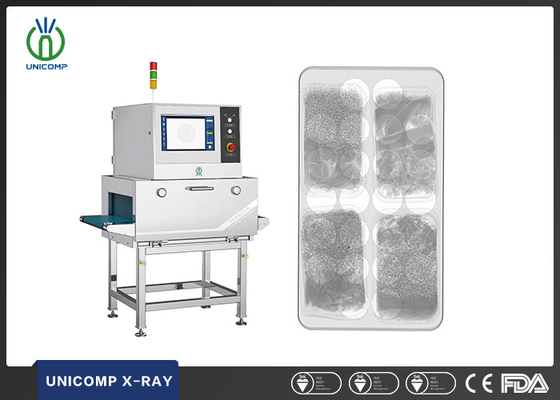

Unicomp UNX4015N X-ray machine improve quality control for ready-to-eat food
Application
UNX4015-N is employed for detecting contaminants in the form of foreign matter within small packaging of lightweight products, including candies, fresh meats, prawns, vegetables, poultry, chocolates, pastries, instant noodles, bread, biscuits, dried fish, ham sausages, beef jerky, nuts, and various other items.
Features
Easy to Operate: one button start&stop, optional default product
Provide High precision automatic foreign detection, It can effectively identify metal, ceramic, glass, bone, shell and other malignant foreign matter in the product
Monitoring, controlling, and improving procedures and outputs in manufacturing with SPC report
With deep learning of AI, the detection sensitivity reaches the industry's highest Intelligent algorithm
Specificaitions
| Equipment Features | Dimension | 1140(W)X1160(D)X1975(H)mm |
| Machine weight | 450kg | |
| X-ray tube | 80kV/210-350W | |
| Power Supply | AC 110/220V, 50/60Hz | |
| Max. Loading weight | 10kg | |
| Channel size | 400mm(W)*150mm(H) | |
| Conveyor Speed | 10-70M/min | |
| Operating Range | 5°C - 40°C ,RH＜80% | |
| Capability | Detection Accuracy | SUS BALL≥ø0.3mm |
| SUS wire≥ø0.2*2mm | ||
| Glass ball≥ø1.0mm | ||
| Ceramic ball≥ø1.0mm | ||
| System Computer | Communications | 1*LAN,2*USB |
| Industrial PC | 17"LCD touch screen；Windows 10 | |
| Optional configuration | Rejector | Sound-Light alarm, flipper,dropout,air jet, Pusher,chute,shuttle |
| Other | Ingress protection | Conveyor: IP66, Others: IP65 |
| X-Ray Safety | <1μSv/h |

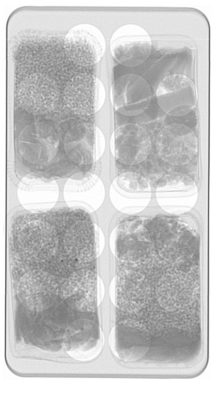

X-ray images
Dimensions and Appearance
