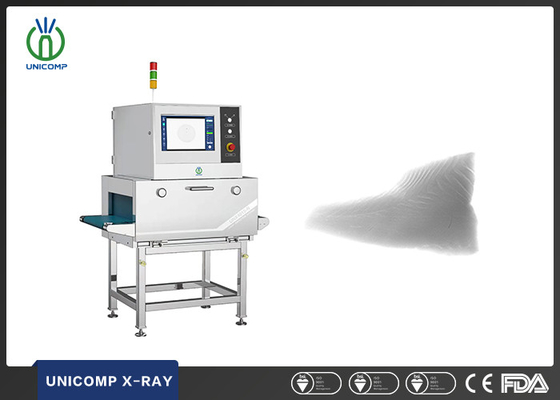

Ultra Performance X-Ray Inspection System Unicomp UNX4015N For Bones Inside Salmon And Fish
Product Details
Unicomp UNX4015N X-Ray Inspection System
,Bones Inside Salmon X-Ray Inspection
,Bones Inside Fish X-Ray Inspection
Ultra performance X-ray inspection system Unicomp UNX4015N for bones inside salmon and fish
Application
UNX4015-N is employed for detecting contaminants in the form of foreign matter within small packaging of lightweight products, including candies, fresh meats, prawns, vegetables, poultry, chocolates, pastries, instant noodles, bread, biscuits, dried fish, ham sausages, beef jerky, nuts, and various other items.
Features
-
Easy to Operate: one button start&stop, optional default product
-
Provide High precision automatic foreign detection, It can effectively identify metal, ceramic, glass, bone, shell and other malignant foreign matter in the product
-
Monitoring, controlling, and improving procedures and outputs in manufacturing with SPC report
-
Through deep learning of AI, the detection sensitivity achieves the highest industry standard for intelligent algorithms.
Specificaitions
| Equipment Features |
Dimension | 1140(W)X1160(D)X1975(H)mm |
| Machine weight | 450kg | |
| X-ray tube |
80kV/210-350W
|
|
| Power Supply | AC 110/220V, 50/60Hz | |
| Max. Loading weight | 10kg | |
| Channel size | 400mm(W)*150mm(H) | |
| Conveyor Speed | 10-70M/min | |
| Operating Range |
5°C - 40°C ,RH＜80%
|
|
| Capability | Detection Accuracy | SUS BALL≥ø0.3mm |
| SUS wire≥ø0.2*2mm | ||
| Glass ball≥ø1.0mm | ||
| Ceramic ball≥ø1.0mm | ||
| System Computer | Communications | 1*LAN,2*USB |
| Industrial PC | 17"LCD touch screen；Windows 10 | |
| Optional configuration | Rejector |
Sound-Light alarm, flipper,dropout,air jet, Pusher,chute,shuttle |
| Other | Ingress protection | Conveyor: IP66, Others: IP65 |
| X-Ray Safety | <1μSv/h |
X-ray images
Dimensions and Appearance
-
MIt is suitable for detecting various food contaminants. It can identify substances such as quartz and ceramics.
-
SVery Clear.
-
