Unicomp UNX4015N Intelligent X-Ray Detects Non-standard Substances in Aluminum Packages
Product Details
Non-standard Substances X Ray
,Intelligent X Ray
,Aluminum Packages X Ray

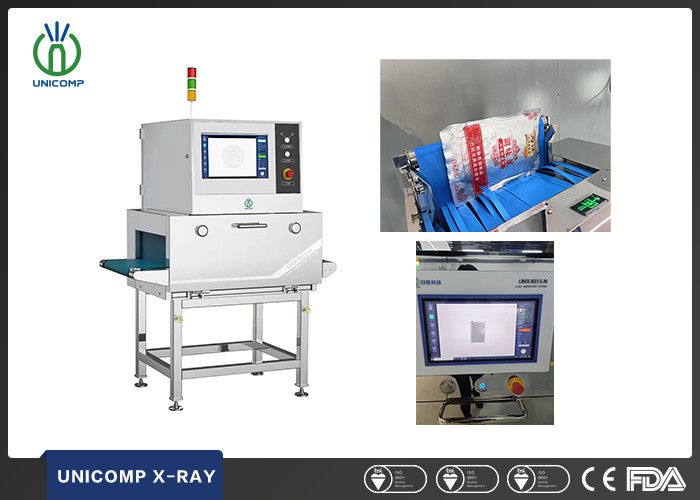

Unnormal matter within aluminum packages detected by Unicomp UNX4015N intelligent X-ray
Application
The UNX4015-N is used for identifying contaminants, specifically foreign matter, in small packages of lightweight products, which encompass candies, fresh meats, prawns, vegetables, poultry, chocolates, baked goods, instant noodles, bread, biscuits, dried fish, ham sausages, beef jerky, nuts, and many other items.
Features
- Easy to Operate: one button start&stop, optional default product
- Provide High precision automatic foreign detection, It can effectively identify metal, ceramic, glass, bone, shell and other malignant foreign matter in the product
Monitoring, controlling, and improving procedures and outputs in manufacturing with SPC report
- With deep learning of AI, the detection sensitivity reaches the industry's highest Intelligent algorithmstandard
Specificaitions
| Equipment Features | Dimension | 1140(W)X1160(D)X1975(H)mm |
| Machine weight | 450kg | |
| X-ray tube | 80kV/210-350W | |
| Power Supply | AC 110/220V, 50/60Hz | |
| Max. Loading weight | 10kg | |
| Channel size | 400mm(W)*150mm(H) | |
| Conveyor Speed | 10-70M/min | |
| Operating Range | 5°C - 40°C ,RH＜80% | |
| Capability | Detection Accuracy | SUS BALL≥ø0.3mm |
| SUS wire≥ø0.2*2mm | ||
| Glass ball≥ø1.0mm | ||
| Ceramic ball≥ø1.0mm | ||
| System Computer | Communications | 1*LAN,2*USB |
| Industrial PC | 17"LCD touch screen；Windows 10 | |
| Optional configuration | Rejector | Sound-Light alarm, flipper,dropout,air jet, Pusher,chute,shuttle |
| Other | Ingress protection | Conveyor: IP66, Others: IP65 |
| X-Ray Safety | <1μSv/h |
X-ray images
Dimensions and Appearance
-
