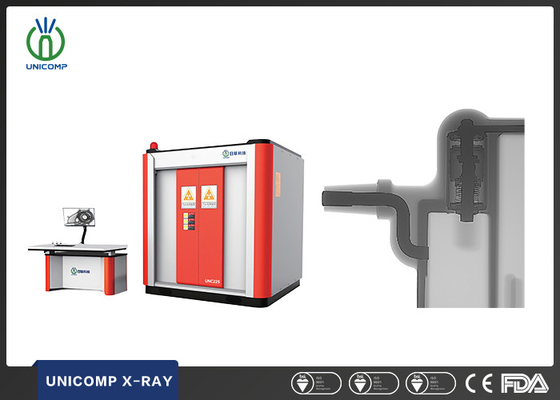

Unicomp UNC225 X-Ray Machine Identifies Flaws in Power Resin with 0.4mm/1.0mm Focal Size at 225kV
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE
Model Number:
UNC225
Trading Properties
Minimum Order Quantity:
1Set
Price:
Can Negotiate
Payment Terms:
T/T, L/C
Supply Ability:
10 sets per month
Product Summary
Unicomp UNC225 X-Ray Identifies Flaws in Power resin Mainly used in metal castings, hardware products, plastic products, refractory materials, resin materials, composite materials, ceramic body and welding metal parts and other small products for non-destructive testing. Functional Characteristics 1...
Product Details
Highlight:
1.0mm X-Ray Machine
,Identifies Flaws X-Ray Machine
,0.4mm X-Ray Machine
Maximum Penetration（FE）:
150mm/25mm
Tube Voltage:
225kV
Focal Size:
0.4mm/1.0mm
Size:
2400mm*2400mm*2442mm（L*W*H）
Detection Range:
Φ500*800mm
Weight:
5000kg
Power Supply:
380AC/50Hz
Product Description
Unicomp UNC225 X-Ray Identifies Flaws in Power resin
Mainly used in metal castings, hardware products, plastic products, refractory materials, resin materials, composite materials, ceramic body and welding metal parts and other small products for non-destructive testing.
Functional Characteristics
1. Wide range of applications to meet the inspection of multiple sizes and types of products. Low failure rate, best-selling equipment for 9 years
2. Safety: High level protection, radiation dose far lower than the national standard;multiple security measures.
3. Operation: User-friendly design of the control system, easy to operate, after a short training can be mastered.
4. High cost-effective: Specially for small product inspection,highly integrated design, complete functions,compact structure.
Technical Parameters and Specifications
|
Footprint
|
2400*2400*2442mm
|
| Equipment weight | 5T |
| System Dimension | 2230mm*1582mm*2478mm(L*W*H) |
| X-ray Tube | 225KV |
| Power | 640W/1600W |
| Pixel Pitch | 139μm |
| Focal size | 1.0mm/3.0mm |
| Image Area | 250mm x 300mm |
Inspection Images:
Overall Rating
5 star
100%
4 star
0
3 star
0
2 star
0
1 star
0
All Reviews
-
TIt's useful for our product.
