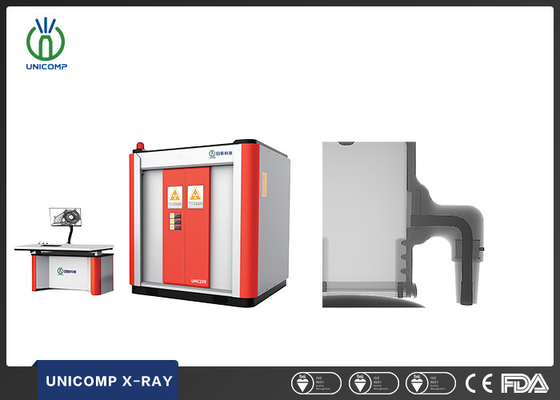

Unicomp UNC225 X-Ray Inspecting Power Resin 5000kg Capacity 225kV Tube Voltage for Hidden Defects
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE
Model Number:
UNC225
Trading Properties
Minimum Order Quantity:
1Set
Price:
Can Negotiate
Payment Terms:
T/T, L/C
Supply Ability:
10 sets per month
Product Summary
Unicomp UNC225 X-Ray Inspecting Power resin for Hidden Defects It is mainly used for non-destructive examination of various small items, including but not limited to metal castings, hardware products, plastic parts, refractory materials, resin materials, composites, ceramic bodies, and welded metal ...
Product Details
Highlight:
Unicomp UNC225 X-Ray
,5000kg Capacity X Ray Machine
,X Ray Machine for Hidden Defects
Maximum Penetration（FE）:
150mm/25mm
Tube Voltage:
225kV
Size:
2400mm*2400mm*2442mm（L*W*H）
Detection Range:
Φ500*800mm
Weight:
5000kg
Product Description
Unicomp UNC225 X-Ray Inspecting Power resin for Hidden Defects
It is mainly used for non-destructive examination of various small items, including but not limited to metal castings, hardware products, plastic parts, refractory materials, resin materials, composites, ceramic bodies, and welded metal components.
Functional Characteristics
- It boasts a wide array of applications, accommodating the inspection needs of various sizes and types of products. With a low failure rate, it has been a top-selling equipment for nine consecutive years.
- Safety: Offering a high level of protection, the radiation dose is significantly below the national standard, complemented by multiple security measures.
- Operation: The control system features a user-friendly design, making it straightforward to operate and easily mastered after minimal training.
- Cost-effectiveness: Specifically tailored for small product inspection, it features a highly integrated design, comprehensive functionality, and a compact structure.
Technical Parameters and Specifications
|
Footprint
|
2400*2400*2442mm
|
| Equipment weight | 5T |
| System Dimension | 2230mm*1582mm*2478mm(L*W*H) |
| X-ray Tube | 225KV |
| Power | 640W/1600W |
| Pixel Pitch | 139μm |
| Focal size | 1.0mm/3.0mm |
| Image Area | 250mm x 300mm |
Inspection Images:
