High Accuracy Intelligent Food X-Ray Scanner System Unicomp UNX6030N For Big Packaged Nutrition Food
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
UNX6030N
Trading Properties
Minimum Order Quantity:
1 set
Price:
can negotiate
Payment Terms:
L/C, T/T
Supply Ability:
100set/montrh
Product Summary
High accuracy intelligent food X-ray scanner system Unicomp UNX6030N for big packaged nutrition food APPLICATION UNX6030-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant ...
Product Details
Highlight:
Intelligent Food X-Ray Scanner System
,High Accuracy X-Ray Scanner System
,Packaged Food X-Ray Scanner System
Machine Weight:
700kg
X-Ray Voltage:
100-120KV / 350-480W
Max. Loading Weight:
25kg
Conveyor Speed:
10-60M/min, 10 - 40 M/min（heavy Load）
Product Description

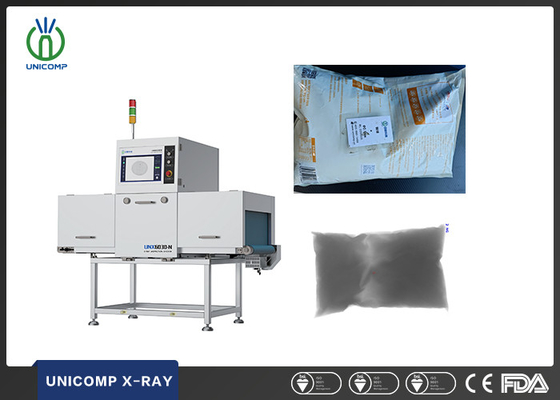

High accuracy intelligent food X-ray scanner system Unicomp UNX6030N for big packaged nutrition food
APPLICATION
UNX6030-N is used to detect foreign matter contaminants in small bags for lightweights products. Such as candy, fresh meat, prawn, vegetable, poultry, chocolates, candy, pasta, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, etc.
FEATURES
- Easy to Operate: one button start&stop, optional default product
-
Provide high precision automatic foreign material detection, It can effectively detect metal, ceramic, glass,bone, shell and other foreign materials in the product
- Monitoring, controlling, and improving procedures and outputs in manufacturing with SPC report
-
With deep learning of AI, the detection sensitivity reaches the industry's highest Intelligent algorithmstandard

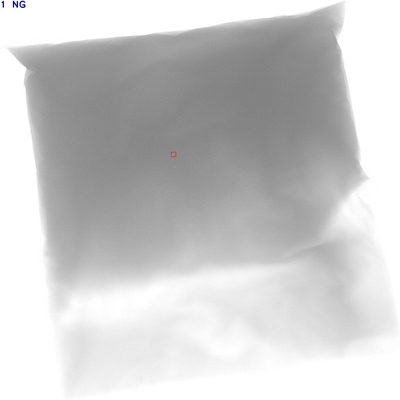

DetectionImage
Technical Specifications
|
Equipment Features |
Dimension | 2005(W)X1280(D)X2195(H)mm |
| Machine weight | 700kg | |
| X-ray tube | 80- 120kv/210-480W | |
| Power Supply |
100-120KV / 350-480W
|
|
| Max. Loading weight | 700kg | |
| Channel size | 600mm(W)* 300mm(H) | |
| Conveyor Speed | 10-60M/min
, 10 - 40 m/min(heavy load)
|
|
|
Operating Range |
10°C to 40°C (50° F to 104° F) ,30% to 90% relative humidity non-condensing |
|
|
Capability |
Detection Accuracy |
SUS BALL≥ø0.3mm |
| SUS wire≥ø0.2*2mm | ||
| Glass ball≥ø1.0mm | ||
| Ceramic ball≥ø1.0mm | ||
|
System Computer |
Communications | 1*LAN,2*USB |
| Industrial PC | 17"LCD touch screen；Windows 10 | |
|
Optional configuration |
Rejector |
Sound-Light alarm, flipper,dropout,air jet, Pusher,chute,shuttle |
|
Other |
X-Ray Safety | <1μSv/h |
| Ingress protection | Conveyor: IP66, Others: IP65 |
Dimensions and Appearance
