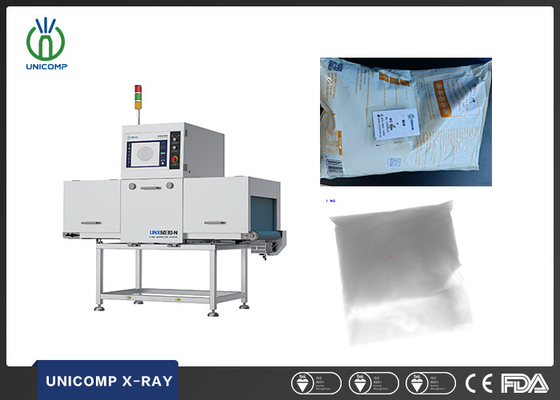

Unicomp UNX6030N Heavy Load X Ray Food Inspection Machine For Soybean Milk Powder In IP66 Waterproof Level
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
UNX6030N
Trading Properties
Minimum Order Quantity:
1 set
Price:
can negotiate
Payment Terms:
L/C, T/T
Supply Ability:
100set/montrh
Product Summary
Unicomp UNX6030N heavy load X ray food inspection machine for soybean milk powder in IP66 waterproof level APPLICATION The UNX6030-N is employed for detecting contaminants in the form of foreign matter within small packages containing lightweight products, including candies, fresh meat, prawns, ...
Product Details
Highlight:
Heavy Load Food Inspection Machine
,Soybean Milk Powder Food Inspection Machine
,IP66 Waterproof Level Food Inspection Machine
Machine Weight:
700kg
Conveyor Speed:
10-60M/min, 10 - 40 M/min（heavy Load）
Product Description
Unicomp UNX6030N heavy load X ray food inspection machine for soybean milk powder in IP66 waterproof level
APPLICATION
The UNX6030-N is employed for detecting contaminants in the form of foreign matter within small packages containing lightweight products, including candies, fresh meat, prawns, vegetables, poultry, chocolates, pastries, instant noodles, bread, biscuits, dried fish, ham sausage, beef jerky, nuts, and more.
FEATURES
- Easy to Operate: one button start&stop, optional default product
-
Provide high precision automatic foreign material detection, It can effectively detect metal, ceramic, glass,bone, shell and other foreign materials in the product
- Monitoring, controlling, and improving procedures and outputs in manufacturing with SPC report
-
With deep learning of AI, the detection sensitivity reaches the industry's highest Intelligent algorithmstandard

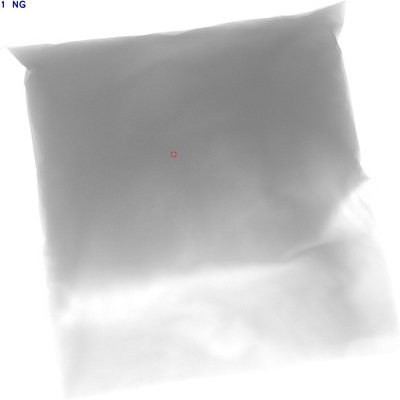

DetectionImage
Technical Specifications
|
Equipment Features |
Dimension | 2005(W)X1280(D)X2195(H)mm |
| Machine weight | 700kg | |
| X-ray tube | 80- 120kv/210-480W | |
| Power Supply |
100-120KV / 350-480W
|
|
| Max. Loading weight | 700kg | |
| Channel size | 600mm(W)* 300mm(H) | |
| Conveyor Speed | 10-60M/min
, 10 - 40 m/min(heavy load)
|
|
|
Operating Range |
10°C to 40°C (50° F to 104° F) ,30% to 90% relative humidity non-condensing |
|
|
Capability |
Detection Accuracy |
SUS BALL≥ø0.3mm |
| SUS wire≥ø0.2*2mm | ||
| Glass ball≥ø1.0mm | ||
| Ceramic ball≥ø1.0mm | ||
|
System Computer |
Communications | 1*LAN,2*USB |
| Industrial PC | 17"LCD touch screen；Windows 10 | |
|
Optional configuration |
Rejector |
Sound-Light alarm, flipper,dropout,air jet, Pusher,chute,shuttle |
|
Other |
X-Ray Safety | <1μSv/h |
| Ingress protection | Conveyor: IP66, Others: IP65 |
Dimensions and Appearance
