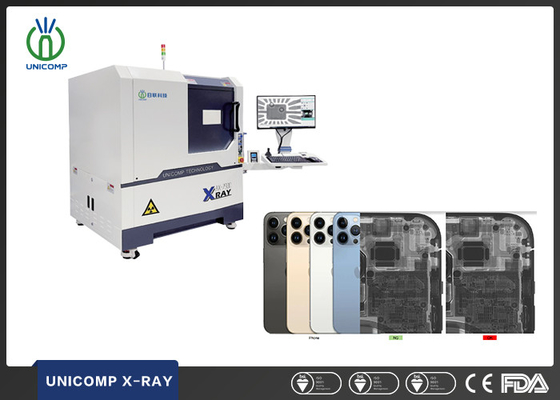

CNC Programable Automatic Inspection Electronics X-Ray Machine Unicomp AX7900 With Tilting Angle 60° For Used Phone Inspection
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
AX7900
Trading Properties
Minimum Order Quantity:
1Set
Price:
can negotiate
Payment Terms:
T/T,L/C
Supply Ability:
300 sets per month
Product Summary
CNC programable automatic inspection Electronics X-ray machine Unicomp AX7900 with tilting angle 60°for used phone inspection Description of IC X Ray machine AX7900: It is broadly utilized in various industries including BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Manufacturin...
Product Details
Highlight:
CNC programmable electronics X-ray machine
,automatic inspection X-ray machine with tilting
,used phone inspection X-ray machine
Voltage:
90kV
Power Supply:
AC 220V, 50/60Hz
Size:
1215(L)x1325(W)x1700(H)mm
X-Ray Leakage:
< 1uSv/h
Weight:
1240kg
Power Consumption:
0.8KW
Detector:
Flat Panel Detector (FPD)
Geometric Magnification:
52X
Pixel Matrix:
1536*1536mm
Effective Detection Area:
129*129mm
Product Description
CNC programable automatic inspection Electronics X-ray machine Unicomp AX7900 with tilting angle 60°for used phone inspection
Description of IC X Ray machine AX7900:
It is broadly utilized in various industries including BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Manufacturing, Small Metal Casting, Electronic Connector Modules, Cables, Aerospace Components, Photovoltaic Industry, among others.
FEATURES of IC Xray machine AX7900:
-
Laser Pinpoint Inspection Table of Large Dimensions for Precise Localization
-
Exact Control with CNC Programming for Automatic Positioning
- FPD Tilting ±25
- Safely Electromagnetic Interlock
-
Fingerprint Access Management System
-
Real-time Monitoring of Radiation
Technical Specifications of AX7900
| Item | Definition | Specs |
| System Parameters | Size | 1215(L)x1325(W)x1700(H)mm |
| Weight | 1240kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 0.8kW | |
| X-ray Tube | Type | Closed |
| Max.Voltage | 90kV | |
| Max.Power | 8W | |
| Spot Size | 5μm | |
| X-ray System | Intensifier | FPD |
| Monitor | 24 ‘’LCD | |
| System Magnification | 52X | |
| Detection Region | Max.Loading Area | 600mm x 520mm |
| Max.Inspection Area | 505mm x 440mm | |
| X-ray Leakage | <1μSv/h | |

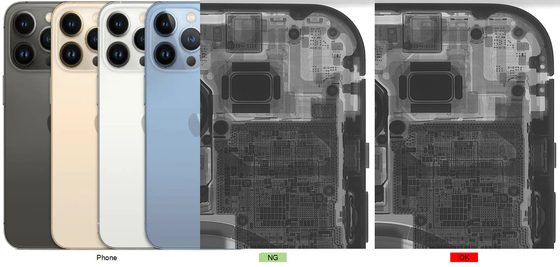

Inspection Images of IC X Ray machine AX7900:
