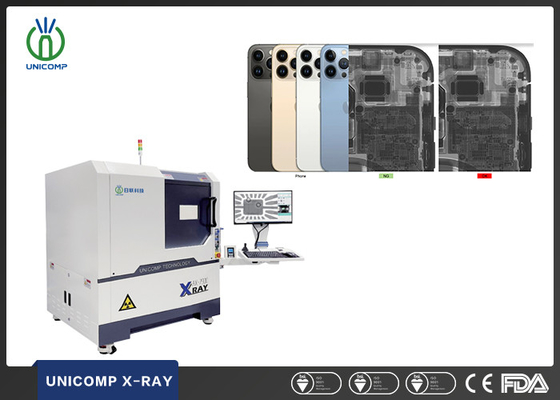

SMT PCB X-Ray Machine High Resolution Micron Focus Spot Size Unicomp AX7900 For Cellphone Inside Quality And Cracks Inspection
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
AX7900
Trading Properties
Minimum Order Quantity:
1Set
Price:
can negotiate
Payment Terms:
T/T, L/C
Supply Ability:
300 sets per month
Product Summary
SMT PCB X-ray machine high resolution micron focus spot size Unicomp AX7900 for cellphone inside quality and cracks inspection Description of IC X Ray machine AX7900: It finds extensive application across multiple sectors such as BGA, CSP, Flip Chip technology, LEDs, Fuses, Diodes, PCBs, Semiconduct...
Product Details
Highlight:
SMT PCB X-Ray Machine
,Cellphone Inside Quality X-Ray Machine
,Cellphone Cracks Inspection X-Ray Machine
Voltage:
0~90kV (Adjustable)
Power Supply:
AC 110/220V, 50/60Hz
Size:
1280(L)x1220(W)x1615(H)mm
Weight:
1100kg
Power Consumption:
1.0KW
Detector:
Flat Panel Detector (FPD)
Pixel Matrix:
1536*1536mm
Effective Detection Area:
129*129mm
Product Description
SMT PCB X-ray machine high resolution micron focus spot size Unicomp AX7900 for cellphone inside quality and cracks inspection
Description of IC X Ray machine AX7900:
It finds extensive application across multiple sectors such as BGA, CSP, Flip Chip technology, LEDs, Fuses, Diodes, PCBs, Semiconductors, the Battery Industry, small-scale metal casting, electronic connector modules, cables, aerospace components, and the Photovoltaic Industry, among others.
FEATURES of IC Xray machine AX7900:
-
Laser Pinpoint Inspection Table of Large Dimensions for Precise Localization
-
Exact Control with CNC Programming for Automatic Positioning
- FPD Tilting ±25
- Safely Electromagnetic Interlock
-
Fingerprint-based Access Control System
Real-time Radiation Monitoring
Technical Specifications of AX7900
| Item | Definition | Specs |
| System Parameters | Size | 1280(L)x1220(W)x1615(H)mm |
| Weight | 1100kg | |
| Power |
AC 110/220V, 50/60Hz
|
|
| Power Consumption | 1.0kW | |
| X-ray Tube | Type |
Sealed
|
| Max.Voltage |
0~90kV (Adjustable)
|
|
| Max.Power | 8W | |
| Spot Size | 5μm | |
| X-ray System | Intensifier | FPD |
| Monitor | 224‘’LCD | |
| System Magnification | 600X | |
| Detection Region | Max.Loading Area | 520mm x 420mm |
| Max.Inspection Area | 460mm x 400mm | |
| X-ray Leakage | <1μSv/h
(Meets All International Standards)
|
|

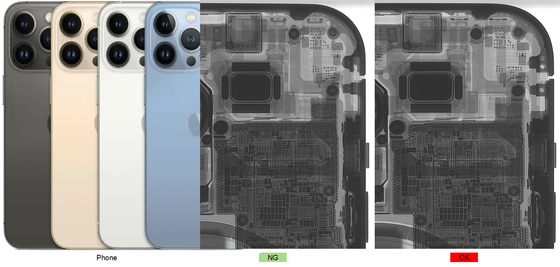

Inspection Images of IC X Ray machine AX7900:
