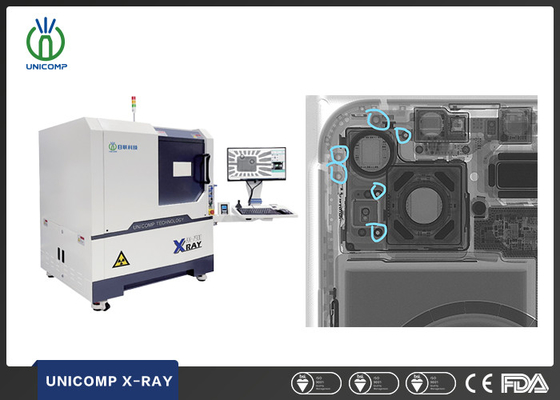

Unicomp AX7900 High Specifications 2D 2.5D X-Ray Machine for Cellphone Inspection and Cracks Checking
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
AX7900
Trading Properties
Minimum Order Quantity:
1Set
Price:
can negotiate
Payment Terms:
T/T, L/C
Supply Ability:
300 sets per month
Product Summary
High specifications electronic boards 2D & 2.5D X-ray machine Unicomp AX7900 for used cellphone quality inspection and cracks checking Description of IC X Ray machine AX7900: It is widely used in various fields, including BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Production, ...
Product Details
Highlight:
Cellphone Inspection X-Ray Machine
,2D 2.5D X-Ray Machine
,Cracks Checking X-Ray Machine
Size:
1280(L)x1220(W)x1615(H)mm
Power Consumption:
1.0KW
Pixel Matrix:
1536*1536mm
Effective Detection Area:
129*129mm
Product Description
High specifications electronic boards 2D & 2.5D X-ray machine Unicomp AX7900 for used cellphone quality inspection and cracks checking
Description of IC X Ray machine AX7900:
It is widely used in various fields, including BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Production, small-scale metal casting, electronic connector modules, cables, aerospace components, as well as the photovoltaic industry, among others.
FEATURES of IC Xray machine AX7900:
-
A Large-Scale Laser Pinpoint Inspection Table for Accurate Localization
Achieving Precise Automatic Positioning through CNC Programming and Exact Control - FPD Tilting ±25
- Electromagnetic Safety Interlock
- Fingerprint-Based Access Control System
- Instantaneous Radiation Surveillance
Technical Specifications of AX7900
| Item | Definition | Specs |
| System Parameters | Size | 1280(L)x1220(W)x1615(H)mm |
| Weight | 1100kg | |
| Power |
AC 110/220V, 50/60Hz
|
|
| Power Consumption | 1.0kW | |
| X-ray Tube | Type |
Sealed
|
| Max.Voltage |
0~90kV (Adjustable)
|
|
| Max.Power | 8W | |
| Spot Size | 5μm | |
| X-ray System | Intensifier | FPD |
| Monitor | 224‘’LCD | |
| System Magnification | 600X | |
| Detection Region | Max.Loading Area | 520mm x 420mm |
| Max.Inspection Area | 460mm x 400mm | |
| X-ray Leakage | <1μSv/h
(Meets All International Standards)
|
|

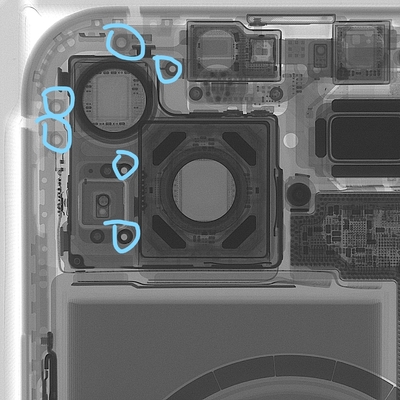

Inspection Images of IC X Ray machine AX7900:
Overall Rating
5 star
100%
4 star
0
3 star
0
2 star
0
1 star
0
All Reviews
-
MThe machine is excellent, the service is satisfactory, and the technology is highly professional.
-
JNICE
-
Mgood machine
