Sealed Tube X-Ray Inspection Equipment for PCBA Adjustable 0-90kV Voltage
Basic Properties
Place of Origin:
China
Brand Name:
Unicomp
Certification:
CE, FDA
Model Number:
AX8200MAX
Trading Properties
Minimum Order Quantity:
1 PCS
Price:
can negotiate
Payment Terms:
T/T, L/C
Supply Ability:
300 pcs per month
Product Summary
X-Ray Inspection Equipment for PCBA Specification Of SMT X Ray machine System Summary Footprint 1280(W)×1500(D)×1705(H)mm Machine Weight 1400 kg Power Supply AC 110~220V, 50/60Hz Plywood Packing Size 175(W)×155(D)×200(H)cm Packing Weight 1500 kg Power Consumption 1.0 kW X-Ray Tube Tube Type Sealed ...
Product Details
Highlight:
Sealed Tube X-Ray Inspection Equipment
,PCBA X-Ray Inspection Equipment
,Adjustable X-Ray Inspection Equipment
Tube Voltage:
0~90kV (Adjustable)
Tube Type:
Sealed
Focus Spot Size:
5μm
Detector:
Flat Panel Detector (FPD)
Packing Weight:
1500 Kg
Product Description

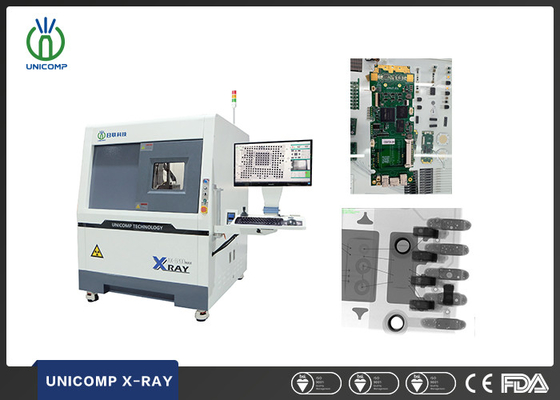

X-Ray Inspection Equipment for PCBA
Specification Of SMT X Ray machine
| System Summary | |
| Footprint | 1280(W)×1500(D)×1705(H)mm |
| Machine Weight | 1400 kg |
| Power Supply | AC 110~220V, 50/60Hz |
| Plywood Packing Size | 175(W)×155(D)×200(H)cm |
| Packing Weight | 1500 kg |
| Power Consumption | 1.0 kW |
| X-Ray Tube | |
| Tube Type | Sealed |
| Max. Power | 8W |
| Voltage | 0~90kV (Adjustable) |
| Focus Spot Size | 5μm |
| Imaging System | |
| Detector | Flat Panel Detector (FPD) |
| Pixel Size | 85μm |
| Effective Detection Area | 130*130mm |
| Frame Rates | 20fps |
| Pixel Matrix | 1536*1536 |
| System Magnification | 600X |
| Software | |
| Auto-measuring | BGA Soldering Voids Auto-measuring and Support Data/Graphic Output |
| Multiple Measuring Tools | Support Measuring Distance, Angle, Diameter, Polygon, PTH filling rate, etc. |
| CNC Mode | CNC Programmable Inspection, Easy Operation and User Friendly |
| Real-time Display | Real-time Displaying the Working Data of Voltage, Current, Angle, Date, etc |
| Navigation | Convenient Target Point Positioning System |
| Motion Control System | |
| Movement Control | Joystick, Keypad, Mouse &Touch Panel |
| Max. Loading Area/Weight | 610*610mm / 10kg |
| Max. Inspection Area | 550*550mm |
| Oblique Views | Max. 60° |
| Manipulator | 6-axis with X / Y / Z1 / Z2 / T1 / T2 |
| Industrial PC | |
| Monitor | 24’’ FHD Interactive Touch LCD Display |
| System OS | Windows 10 64bit |
| Hard disk | 1TB |
| RAM | 8GB |
| CPU model | Intel i7 Processor |
| Other Features | |
| Door Open | Electric Sliding |
| X-Ray Safety | <1μSv/h (Meets All International Standards) |
| Authority Management | Fingerprint Access Magnagement System, and Support Password Accessing. |
| Safety Operation | Electromagnetic Interlock, Warning Light and Real-time Radioation Leakage Monitor |
| * Specifications are subject to change without notice, All trademarks are the property of the system maker. | |
Application Fields of X-ray machine
Widely applied for BGA , CSP , Flip Chip, LED , Fuse,Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic
Connector Module, Cables,Aerospace Components, Photovoltaic Industry, etc.
Function & Features of X-ray machie
