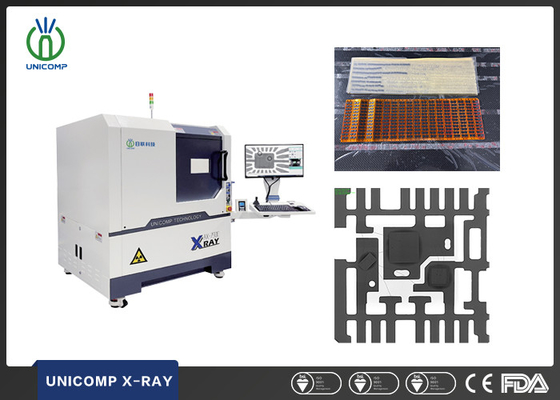

Upgrade to Flat Panel Detector FPD X-Ray Inspection Equipment For IC with 1536*1536mm Pixel Matrix
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
AX7900
Trading Properties
Minimum Order Quantity:
1Set
Price:
can negotiate
Payment Terms:
T/T, L/C
Supply Ability:
300 sets per month
Product Summary
X-Ray Inspection Equipment for IC Description of IC X Ray machine AX7900: It has extensive applications in diverse fields such as BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Production, Miniature Metal Casting, Electronic Connector Assemblies, Wiring, Aerospace Parts, and ...
Product Details
Highlight:
IC X-Ray Inspection Equipment
,1536*1536mm X-Ray Inspection Equipment
,X-Ray Inspection Equipment For IC
Voltage:
0~90kV (Adjustable)
Weight:
1100kg
Focus Spot Size:
5μm
Detector:
Flat Panel Detector (FPD)
Pixel Size:
85μm
System Magnification:
600X
Pixel Matrix:
1536*1536mm
Product Description
X-Ray Inspection Equipment for IC
Description of IC X Ray machine AX7900:
It has extensive applications in diverse fields such as BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Production, Miniature Metal Casting, Electronic Connector Assemblies, Wiring, Aerospace Parts, and Photovoltaic Industry, to name a few.
FEATURES of IC Xray machine AX7900:
-
Precision Positioning Laser Pointer System Installed on a Large Inspection Table
-
Accurate Control, CNC Programming Automatic Positioning
- FPD Tilting ±25
- Safely Electromagnetic Interlock
-
Fingerprint Access Management System
-
Real-time Monitoring of Radiation
Technical Specifications of AX7900
| Item | Definition | Specs |
| System Parameters | Size | 1280(L)x1220(W)x1615(H)mm |
| Weight | 1100kg | |
| Power |
AC 110/220V, 50/60Hz
|
|
| Power Consumption | 1.0kW | |
| X-ray Tube | Type |
Sealed
|
| Max.Voltage |
0~90kV (Adjustable)
|
|
| Max.Power | 8W | |
| Spot Size | 5μm | |
| X-ray System | Intensifier | FPD |
| Monitor | 224‘’LCD | |
| System Magnification | 600X | |
| Detection Region | Max.Loading Area | 520mm x 420mm |
| Max.Inspection Area | 460mm x 400mm | |
| X-ray Leakage | <1μSv/h
(Meets All International Standards)
|
|
Inspection Images of IC X Ray machine AX7900:
