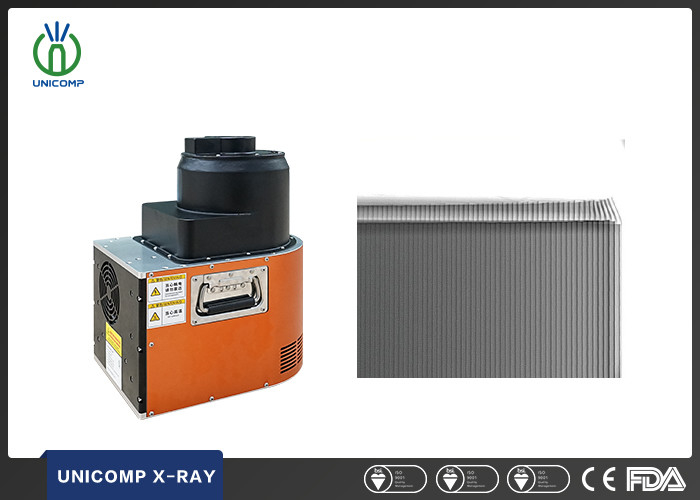

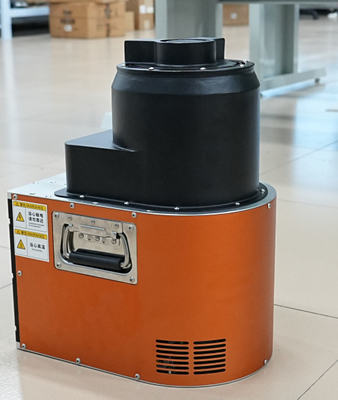

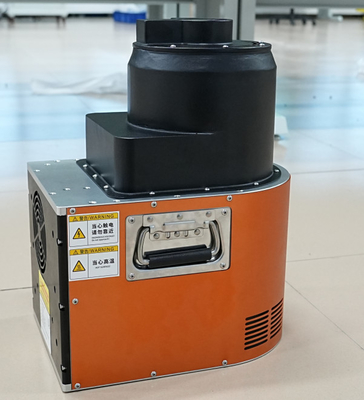

Unicomp 180kV Microfocus X-ray Source For IGBT substrate / module
Description of 180kV Microfocus X-ray Source :
UNMS-U180B is a closed tube 180 kV Microfocus X-Ray Source using hot cathode technology, digital control and 100% domestic raw materials. It has the advantages of small focal spot size, high magnification, stable X-Ray emission, higher output power and strong penetration ability. The high voltage, control circuit and cooling unit are properly arranged within a compact space, with RS232 serial port control. It is very suitable for imaging applications with high resolution and high penetration.
APPLICATION :
-
Integrated Circuit Package
-
SMT, PCBA Electronic Manufacturing
-
IGBT Substrate / Module
-
EV Battery
- Metal parts inspection
- Plastic parts inspection
Technical Specifications :
| Operating Tube Voltage Range | 40-180 kV | |
| Operating Tube Current Range | 0-500 μA | |
| Maximum Tube Power | 90W | |
| Input Voltage (DC) | 48±0.5V | |
| Power Consumption | ＜200W | |
| Window Material/Thickness | Be/0.50mm | |
| Window Diameter | 40±0.5mm | |
| Beam Angle | 94±3° | |
| Target Material | Thungsten | |
| FOD | 17.4±0.5mm | |
| Weight | Approx. 34kg | |
| Safty Interlock | External Short-circuit | |
| Control Connection | Interface: RS-232(9-pin socket) | |
| Operating Mode | Continuous |

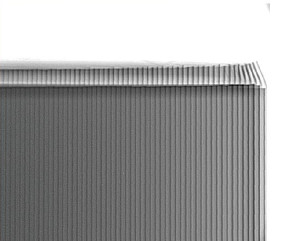

Inspection Images:
