Unicomp X-ray AX8300VS Multi-mode 3d Micro-focus X-ray Analyze Inspection System
Basic Properties
Place of Origin:
China
Brand Name:
Unicomp
Certification:
CE
Model Number:
AX8300vs
Trading Properties
Minimum Order Quantity:
1 PCS
Price:
can negotiate
Payment Terms:
T/T,L/C
Supply Ability:
30 sets per month
Product Summary
Unicomp X-ray AX8300VS Multi-mode 3d Micro-focus X-ray Analyze Inspection System Application BGA, CSP, LED, Flip Chip; Automotive Components and New Energy Industry; Aluminum Die casting ,molded plastic; Ceramic products and other special industries. Features 1. precise detection inspection of tiny ...
Product Details
Name:
Unicomp X-ray AX8300VS Multi-mode 3d Micro-focus X-ray Analyze Inspection System
Footprint:
1400X1720X1800mm
Machine Weight:
2925kg
Power:
4.5kw
Product Description

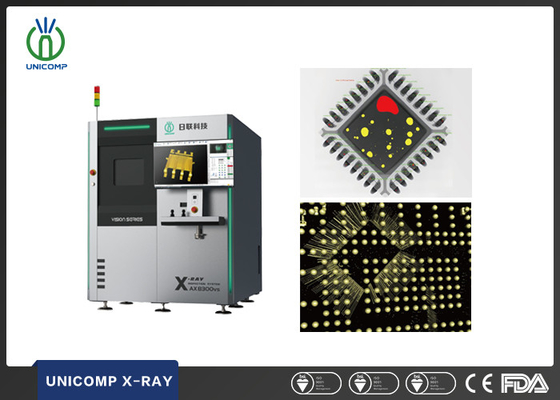

Unicomp X-ray AX8300VS Multi-mode 3d Micro-focus X-ray Analyze Inspection System
Application
BGA, CSP, LED, Flip Chip; Automotive Components and New Energy Industry; Aluminum Die casting ,molded plastic; Ceramic products and other special industries.
Features
1. precise detection inspection of tiny defects
2. multi-mode 3d reconstruction
3. synchronized 7-axis manipulation with any angle
4. batch mode positing inspection
5. closed tube with maintenance-free x-ray source
6. multi-resolution FPD detector
7. precision vibration-free rotation table on air bearings(optional)
Specifications
| Power | 4.5kw |
|
Detecor
|
Hign-defintion flat panel detector |
| Voltage | single-phase 220VAC,50/60Hz |
| Image resolution | ≤5µm |
| Dimensions | 1400X1720X1800mm |
| Weight | 2925kg |

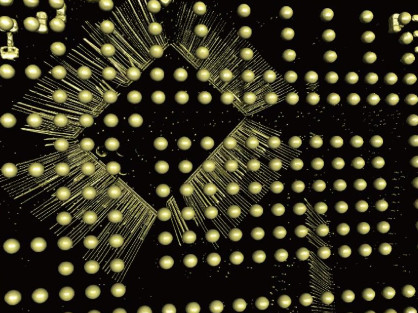

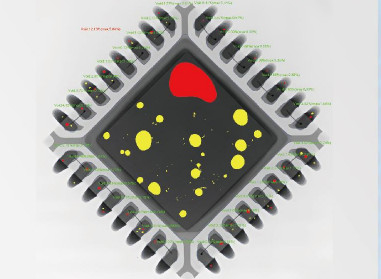

Inspection Images
Footprint
FAQ
1. How about the package? Is it safe during the delivery?
All X-ray inspection machine is packed with standard wooden solid carton. It is safe when shipping.
2. Do you provide the Warranty? How about the after-sales service?
1-year warranty free for spare parts, Whole life technical support.
We have a professional after-sales team, if any questions, assistant videos are also provided in the after-sale service.
3. If we come to your factory if you will provide free training?
Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.
Our Services
Help customers analyze product projects and provide detection solutions.Provide professional detection solutions.We have skilled jig design services.24-hour feedback speed by email to others.Free sample detection test.Provide shipping/delivery information checking service.One year guarantee, all life maintain promise.
