Unicomp UNCT3200 High-Resolution 450KV 3D CT/computed Tomography System For Engine Blades Castings Porosity Analysis
Product Details
Unicomp UNCT3200 High-Resolution 450KV 3D CT/computed tomography System for engine blades Castings porosity analysis
Product Description:

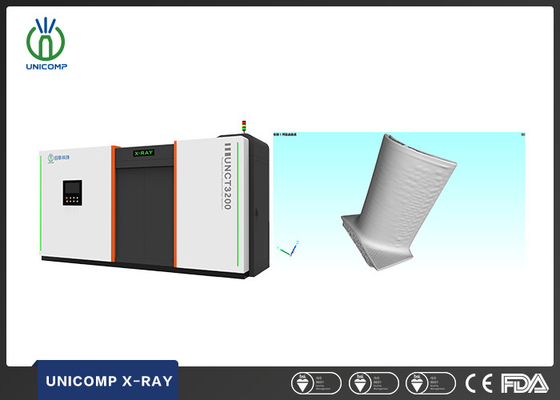

The UNCT3200 industrial CT testing apparatus is designed with a vertical double - column structure and a high - precision monolithic marble base. It is outfitted with a high - power split ray tube and a large - sized flat - panel detector to fulfill the diverse inspection requirements of customers.
This inspection system boasts a range of functions, including material analysis, failure analysis, structural analysis, defect analysis, precision measurement, and reverse engineering. The entire equipment is constructed with a marble body and incorporates a high - precision motion system.
It primarily comprises an X - ray system, a high - resolution real - time imaging system, a computer image processing system, a mechanical transmission system, an electrical control system, and an X - ray protection system, among other components.
The UNCT3200 finds extensive applications in the detection of items such as ceramics, pottery, metals, and animal specimens. It is also used for fiber material analysis, failure analysis, structural analysis, defect analysis, precision measurement, and reverse engineering tasks.
Technical Parameters:
| Product Name: | 320KV Computed Tomography And X-Ray Inspection Machine Unicomp UNCT3200 For Engine Blades Checking |
| Continuous power | 800W/1800W |
| Focal size(EN 12543) | d=0.4mm/d=1.0mm |
| Cooling medium | oil |
| Maximum detected weight | 100kg |
| Imaging area |
≤430mm×430mm
|
| Training: | Yes, we warmly welcome you to visit our factory, we will arrange the free training for you. |
| Services: | Help customers analyze product projects and provide detection solutions. Free sample detection test. Provide professional detection solutions. We have skilled jig design services. Provide shipping/delivery information checking service. One year guarantee, all life maintain promise. 24-hour feedback speed by email to others. |
Support and Services:
Our Industrial X Ray Machine product comes with comprehensive technical support and services to ensure optimal performance and reliability. Our trained technicians are available to provide assistance with installation, setup, and calibration of the machine. In addition, we offer ongoing maintenance and repair services to keep the machine running smoothly and to minimize downtime. Our team also provides training and consultation services to help users get the most out of the machine and to ensure safe and effective operation. Contact us for more information about our technical support and services.
FAQ:
Q: How about the package? Is it safe during the delivery?
A: All X-ray inspection machine is packed with standard wooden solid carton. It is safe when shipping.
Q: Do you provide the Warranty? How about the after-sales service?
A: 1-year warranty free for spare parts, Whole life technical support.
We have a professional after-sales team, if any questions, assistant videos are also provided in the after-sale service.
Q: If we come to your factory if you will provide free training?
A: Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.

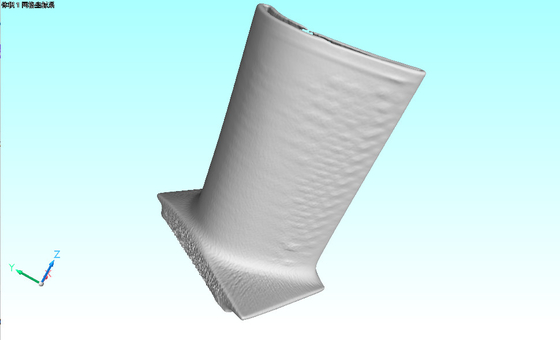

Inspection Images:
-
JNICE
-
Pgood product
-
SStable product quality , reliable cooperation partner
-
