Unicomp AX9100max Electronics X Ray Machine FOR Flip-Chip BGA (FCBGA)

Large Image : Unicomp AX9100max Electronics X Ray Machine FOR Flip-Chip BGA (FCBGA)

Product Details:

Place of Origin:	China
Brand Name:	UNICOMP
Certification:	CE, FDA
Model Number:	AX9100max
Document:	AX9100MAX-Dual screen.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	can negotiate
Packaging Details:	Unicomp Wood.
Delivery Time:	15 days
Payment Terms:	L/C,T/T
Supply Ability:	100set/montrh

Contact Now

Detailed Product Description

Voltage:	130kV	Movement Control:	Mouse & Keyboard & Dual Joystick
Max. Loading Area:	Φ620[mm]	Max. Inspection Area:	450*600[mm]
Tilt And Rotation:	Rotate The Swing Arm Up To 60°	Table:	Plane Rotation 360°
Highlight:	Unicomp AX9100max X Ray Machine , Flip-Chip BGA X Ray Machine , FCBGA electronics inspection machine

Unicomp AX9100max Electronics X Ray Machine FOR Flip-Chip BGA (FCBGA)

The Unicomp AX9100max X-ray Inspection System is engineered specifically for IGBT module analysis and serves a broad range of industries, including:

BGA/CSP/Flip Chip packaging
LED & optoelectronic components
Fuse & diode manufacturing
PCB & semiconductor assembly
Battery production
Small metal castings
Electronic connector modules & cables
Photovoltaic (PV) cell inspection

Application Fields

Application fields of Unicomp AX9100max X-ray Machine

Functions and Features

Functions and features of Unicomp AX9100max X-ray Machine

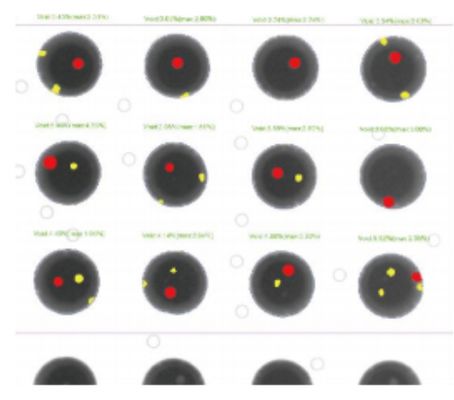

Inspection Image

Sample inspection image from Unicomp AX9100max X-ray Machine

Technical Parameters and Specifications

Technical specifications of Unicomp AX9100max X-ray Machine

Dimensions and Appearance

Dimensions and appearance of Unicomp AX9100max X-ray Machine
