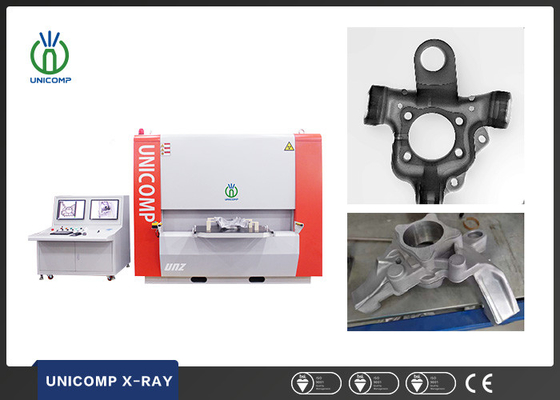

High Accuracy Steering Knuckle NDT X Ray Machine Unicomp UNZ225 For Automotive Parts

High accuracy steering knuckle NDT X-ray machine Unicomp UNZ225 used for automotive parts welding lines cracks testing

The UNZ series is one of Unicomp Technology most popular models for aluminum casting, aerospace components and steel pipe. It offers an excellent balance of power and space sensitivity. The system can handle products up to 120cm in size while seated nicely in your failure analysis lab or busy production line.

SYSTEM CAPABILITIES

Advanced 2D X-ray inspection

Overall Maximum System Resolution: ~5 microns

120cm diameter x 120cm tall nominal part envelope

Comprehensive acquisition, processing and archival program with user-friendly interface

High performance image processing and measurement functions

Non-proprietary multiple image format

X-RAY SOURCE

Micro-focus X-ray tube

Voltage Range: 225 kV

Minimum Focal Spot Size: ~5 microns

X-RAY DETECTOR

Digital X-ray detector types: Flat Panel

Grade Options: Standard, Premium,

Detector Size: up to 120 cm x 120 cm

MANIPULATOR

Maximum Sample Weight: 300kg

Most NDT X-ray systems could provide quality assurance in a variety of settings, which include but are not limited to:

Aviation

Construction

Manufacturing

Industrial Plants (Nuclear, Petrochemical, Power, Refineries, Fabrication Shops, etc.

Pipelines

Railways

Food industry

CABINET

• External Dimension: 3200mm*3873mm*3277mm(L*W*H)
• Cabinet Features: interior lighting, sliding access door, leaded glass viewing window
• Exact specifications vary depending on tube, detector, and other optional configurations.
