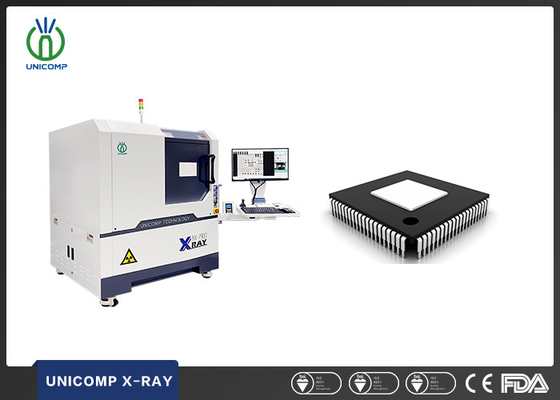

90kv Real-time High Precision X Ray Machine Unicomp AX7900 For PCBA Quality Control
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
AX7900
Trading Properties
Minimum Order Quantity:
1Set
Price:
can negotiate
Payment Terms:
T/T,L/C
Supply Ability:
300 sets per month
Product Summary
90kv real-time high precision X ray machine Unicomp AX7900 for PCBA quality control Description of IC X Ray machine AX7900: It is extensively used in various industries, encompassing BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor production, Batteries, Small Metal Casting, Electronic ...
Product Details
Highlight:
pneumatic cleaner
,stencil cleaning machine
,Unicomp Stencil Cleaner
Voltage:
0~90kV (Adjustable)
Power Supply:
AC 110/220V, 50/60Hz
Size:
1280(L)x1220(W)x1615(H)mm
X-Ray Leakage:
< 1uSv/h
Power Consumption:
1.0KW
Detector:
Flat Panel Detector (FPD)
Pixel Size:
85μm
System Magnification:
600X
Pixel Matrix:
1536*1536mm
Product Description
90kv real-time high precision X ray machine Unicomp AX7900 for PCBA quality control
Description of IC X Ray machine AX7900:
It is extensively used in various industries, encompassing BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor production, Batteries, Small Metal Casting, Electronic Connector Modules, Cables, Aerospace Components, as well as Photovoltaics.
FEATURES of IC Xray machine AX7900:
- Laser Pinpoint for Precise Location on Large-Scale Inspection Tables
-
Accurate Control, CNC Programming Automatic Positioning
- FPD Tilting ±25
- Safely Electromagnetic Interlock
-
Fingerprint Access Management System
-
Real-time Monitoring of Radiation
Technical Specifications of AX7900
| Item | Definition | Specs |
| System Parameters | Size | 1280(L)x1220(W)x1615(H)mm |
| Weight | 1100kg | |
| Power |
AC 110/220V, 50/60Hz
|
|
| Power Consumption | 1.0kW | |
| X-ray Tube | Type |
Sealed
|
| Max.Voltage |
0~90kV (Adjustable)
|
|
| Max.Power | 8W | |
| Spot Size | 5μm | |
| X-ray System | Intensifier | FPD |
| Monitor | 224‘’LCD | |
| System Magnification | 600X | |
| Detection Region | Max.Loading Area | 520mm x 420mm |
| Max.Inspection Area | 460mm x 400mm | |
| X-ray Leakage | <1μSv/h
(Meets All International Standards)
|
|

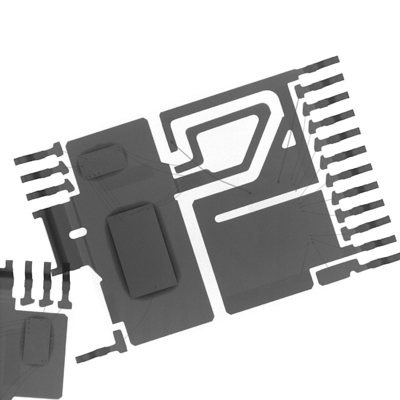

Inspection Images of IC X Ray machine AX7900:
