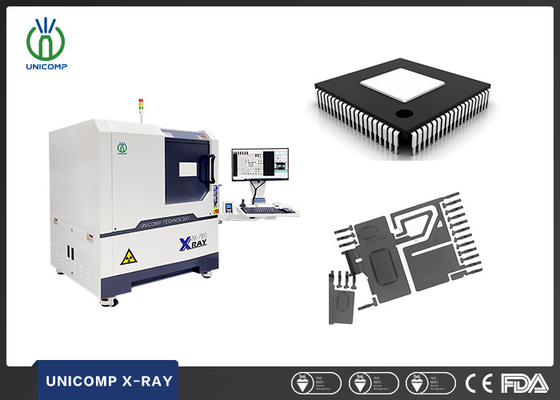

5 Micron High Resolution 90kv X Ray Machine Unicomp AX7900 With Five Micron Tube For PCBA Testing
Basic Properties
Place of Origin:
China
Brand Name:
UNICOMP
Certification:
CE, FDA
Model Number:
AX7900
Trading Properties
Minimum Order Quantity:
1Set
Price:
Can Negotiate
Payment Terms:
T/T,L/C
Supply Ability:
300 sets per month
Product Summary
5 micron high resolution 90kv X ray machine Unicomp AX7900 with five micron tube for PCBA testing Description of IC X Ray machine AX7900: Widely applied for BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, ...
Product Details
Highlight:
stencil cleaning machine
,stencil washer
,High Precision Pneumatic Cleaner
Voltage:
0~90kV (Adjustable)
Power Supply:
AC 110/220V, 50/60Hz
Size:
1280(L)x1220(W)x1615(H)mm
X-Ray Leakage:
< 1uSv/h
Power Consumption:
1.0KW
Detector:
Flat Panel Detector (FPD)
Pixel Size:
85μm
System Magnification:
600X
Effective Detection Area:
129*129mm
Product Description
5 micron high resolution 90kv X ray machine Unicomp AX7900 with five micron tube for PCBA testing
Description of IC X Ray machine AX7900:
Widely applied for BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Aerospace Components, Photovoltaic Industry, etc.
FEATURES of IC Xray machine AX7900:
-
Large Size Inspection Table Laser Pinpoint For Precise Location
-
Accurate Control, CNC Programming Automatic Positioning
- FPD Tilting ±25
- Safely Electromagnetic Interlock
-
Fingerprint Access Management System
-
Real-time Monitoring of Radiation
Technical Specifications of AX7900
| Item | Definition | Specs |
| System Parameters | Size | 1280(L)x1220(W)x1615(H)mm |
| Weight | 1100kg | |
| Power |
AC 110/220V, 50/60Hz
|
|
| Power Consumption | 1.0kW | |
| X-ray Tube | Type |
Sealed
|
| Max.Voltage |
0~90kV (Adjustable)
|
|
| Max.Power | 8W | |
| Spot Size | 5μm | |
| X-ray System | Intensifier | FPD |
| Monitor | 224‘’LCD | |
| System Magnification | 600X | |
| Detection Region | Max.Loading Area | 520mm x 420mm |
| Max.Inspection Area | 460mm x 400mm | |
| X-ray Leakage | <1μSv/h
(Meets All International Standards)
|
|

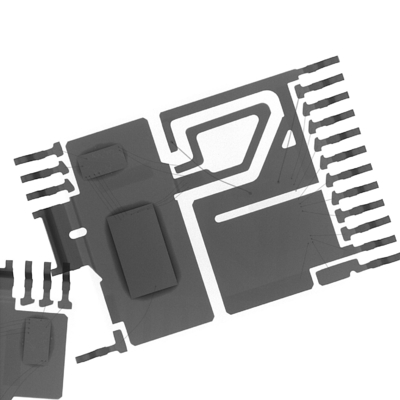

Inspection Images of IC X Ray machine AX7900:
