Product Details:
Payment & Shipping Terms:
|
| Voltage: | 0~90kV (Adjustable) | Power Supply: | AC 110/220V, 50/60Hz |
|---|---|---|---|
| Size: | 1280(L)x1220(W)x1615(H)mm | X-ray Leakage: | < 1uSv/h |
| Power Consumption: | 1.0KW | Detector: | Flat Panel Detector (FPD) |
| Pixel Size: | 85μm | System Magnification: | 600X |
| Pixel Matrix: | 1536*1536mm | Effective Detection Area: | 129*129mm |

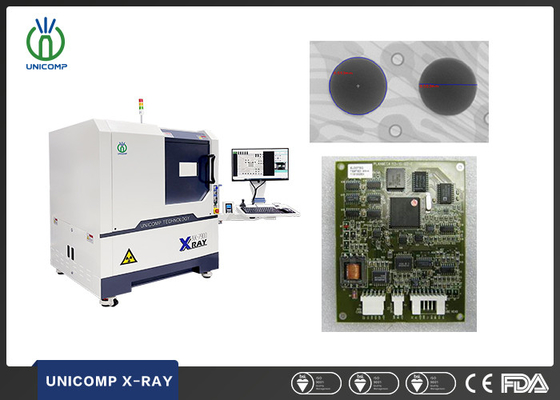

90kv X ray machine high resolution Unicomp AX7900 with 5um tube for BGA bonding wires curvature testing
Description of IC X Ray machine AX7900:
It is broadly utilized in industries such as BGA, CSP, Flip Chip, LED, Fuse, Diode, PCB, Semiconductor, Batteries, Small Metal Casting, Electronic Connector Modules, Cables, Aerospace Components, and Photovoltaics, among others.
FEATURES of IC Xray machine AX7900:
Technical Specifications of AX7900
| Item | Definition | Specs |
| System Parameters | Size | 1280(L)x1220(W)x1615(H)mm |
| Weight | 1100kg | |
| Power |
AC 110/220V, 50/60Hz
|
|
| Power Consumption | 1.0kW | |
| X-ray Tube | Type |
Sealed
|
| Max.Voltage |
0~90kV (Adjustable)
|
|
| Max.Power | 8W | |
| Spot Size | 5μm | |
| X-ray System | Intensifier | FPD |
| Monitor | 224‘’LCD | |
| System Magnification | 600X | |
| Detection Region | Max.Loading Area | 520mm x 420mm |
| Max.Inspection Area | 460mm x 400mm | |
| X-ray Leakage | <1μSv/h
(Meets All International Standards)
|
|

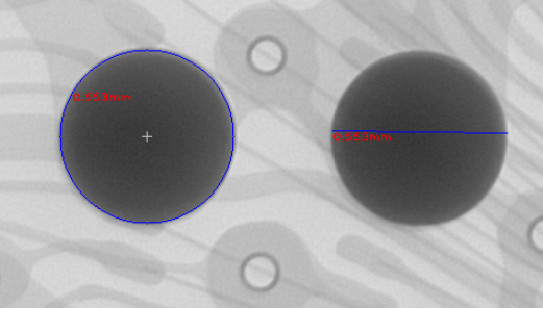

Inspection Images of IC X Ray machine AX7900:
